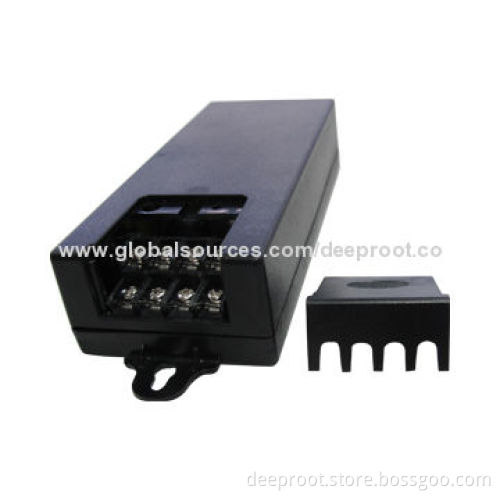

60W AC to DC Switching Power Supply, 1-4CH for CCTV Products, 100 to 240V AC, 50/60Hz Voltage
  • 60W AC to DC Switching Power Supply, 1-4CH for CCTV Products, 100 to 240V AC, 50/60Hz Voltage
  • 60W AC to DC Switching Power Supply, 1-4CH for CCTV Products, 100 to 240V AC, 50/60Hz Voltage
60W AC to DC Switching Power Supply, 1-4CH for CCTV Products, 100 to 240V AC, 50/60Hz Voltage
60W AC to DC Switching Power Supply, 1-4CH for CCTV Products, 100 to 240V AC, 50/60Hz Voltage

60W AC to DC Switching Power Supply, 1-4CH for CCTV Products, 100 to 240V AC, 50/60Hz Voltage

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Input: 90-240V
    • Connecting plugs: US/EUR/ UK/AU/others, C6/C8/C14/others
    • Voltage: 100 to 240V AC, 50/60Hz
    • Output: 9-12V
    • Connector: 5.5 x 2.1mm/others, 90cm/others
    • Voltage: 3 to 24V DC ±5%
    • Maximum power: 60W
    • Ripple wave (mVp-p): <1%
    • Linear modulate: ±0.5% (maximum)
    • Temperature coefficient: ±0.02%/°C
    • Start time: ≤3 seconds (240V AC input, iO = 100%)
    • Guard time: ≥20ms (240V AC input, iO = 100%)
    • Output standard: 12V, 5A 4CH
    • Protections:
      • Over-ride range: 115 to 200%VA, automatic recovery
      • Short-circuit: 1 short-circuit, automatic recovery
    • Insulation:
      • Strength: 1,500V AC/10mA, 1 minute
      • Resistance: ≥30MΩ, 500V DC
    • Environment:
      • Working temperature: 0 to 40°C, 10 to 90% RH
      • Storage temperature: -20 to 60°C, 10 to 90% RH
      • Size: 140 * 60 * 33mm
      • Net weight: 236g
  • Input: 90-240V
  • Connecting plugs: US/EUR/ UK/AU/others, C6/C8/C14/others
  • Voltage: 100 to 240V AC, 50/60Hz
  • Output: 9-12V
  • Connector: 5.5 x 2.1mm/others, 90cm/others
  • Voltage: 3 to 24V DC ±5%
  • Maximum power: 60W
  • Ripple wave (mVp-p): <1%
  • Linear modulate: ±0.5% (maximum)
  • Temperature coefficient: ±0.02%/°C
  • Start time: ≤3 seconds (240V AC input, iO = 100%)
  • Guard time: ≥20ms (240V AC input, iO = 100%)
  • Output standard: 12V, 5A 4CH
  • Protections:
    • Over-ride range: 115 to 200%VA, automatic recovery
    • Short-circuit: 1 short-circuit, automatic recovery
  • Insulation:
    • Strength: 1,500V AC/10mA, 1 minute
    • Resistance: ≥30MΩ, 500V DC
  • Environment:
    • Working temperature: 0 to 40°C, 10 to 90% RH
    • Storage temperature: -20 to 60°C, 10 to 90% RH
    • Size: 140 * 60 * 33mm
    • Net weight: 236g
  • Over-ride range: 115 to 200%VA, automatic recovery
  • Short-circuit: 1 short-circuit, automatic recovery
  • Strength: 1,500V AC/10mA, 1 minute
  • Resistance: ≥30MΩ, 500V DC
  • Working temperature: 0 to 40°C, 10 to 90% RH
  • Storage temperature: -20 to 60°C, 10 to 90% RH
  • Size: 140 * 60 * 33mm
  • Net weight: 236g
