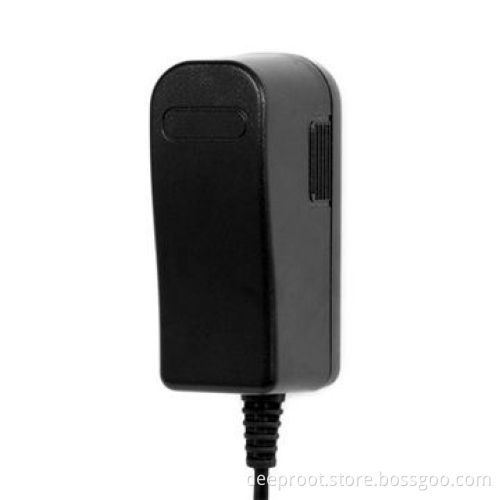

12V Power Adapter with 100 to 240V AC Inputs, 15W Maximum Power, with RoHS approval
  • 12V Power Adapter with 100 to 240V AC Inputs, 15W Maximum Power, with RoHS approval
  • 12V Power Adapter with 100 to 240V AC Inputs, 15W Maximum Power, with RoHS approval
12V Power Adapter with 100 to 240V AC Inputs, 15W Maximum Power, with RoHS approval
12V Power Adapter with 100 to 240V AC Inputs, 15W Maximum Power, with RoHS approval

12V Power Adapter with 100 to 240V AC Inputs, 15W Maximum Power, with RoHS approval

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Connecting plug: USA
    • Voltages: 100 to 240V AC, 50/60Hz
    • Connector: 5.5 x 2.1mm, 120cm/others
    • Voltages: 3 to 24V DC ±5%
    • Maximum power: 12W
    • Ripple wave (mVp-p): ≤1%
    • Linear modulate: ±0.5% (maximum)
    • Temperature coefficient: ±0.02%/°C
    • Start time: ≤3 seconds (240V AC input, Io: 100%)
    • Guard time: ≥20ms (240V AC input, Io: 100%)
    • Standard: 12V DC, 1A
    • Protections:
      • Over-ride: 115 to 200% V AC, automatic recovery
      • Short-circuit: 1 channel, automatic recovery
    • Insulation:
      • Strength: 1,500V AC/10mA, 1 minute
      • Resistance: ≥30MΩ, 500V DC
    • Environment:
      • Working temperatures: 0 to 40°C, 10 to 90% RH
      • Storage temperatures: -20 to 60°C, 10 to 90% RH
    • Dimensions: 78 x 32 x 56mm
    • Net weight: 76g
  • Connecting plug: USA
  • Voltages: 100 to 240V AC, 50/60Hz
  • Connector: 5.5 x 2.1mm, 120cm/others
  • Voltages: 3 to 24V DC ±5%
  • Maximum power: 12W
  • Ripple wave (mVp-p): ≤1%
  • Linear modulate: ±0.5% (maximum)
  • Temperature coefficient: ±0.02%/°C
  • Start time: ≤3 seconds (240V AC input, Io: 100%)
  • Guard time: ≥20ms (240V AC input, Io: 100%)
  • Standard: 12V DC, 1A
  • Protections:
    • Over-ride: 115 to 200% V AC, automatic recovery
    • Short-circuit: 1 channel, automatic recovery
  • Insulation:
    • Strength: 1,500V AC/10mA, 1 minute
    • Resistance: ≥30MΩ, 500V DC
  • Environment:
    • Working temperatures: 0 to 40°C, 10 to 90% RH
    • Storage temperatures: -20 to 60°C, 10 to 90% RH
  • Dimensions: 78 x 32 x 56mm
  • Net weight: 76g
  • Over-ride: 115 to 200% V AC, automatic recovery
  • Short-circuit: 1 channel, automatic recovery
  • Strength: 1,500V AC/10mA, 1 minute
  • Resistance: ≥30MΩ, 500V DC
  • Working temperatures: 0 to 40°C, 10 to 90% RH
  • Storage temperatures: -20 to 60°C, 10 to 90% RH
