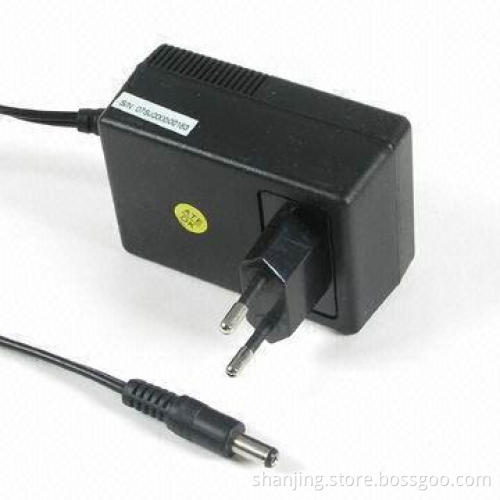

18W Switching Power Adapter with 100-240V AC, 12V/1.5A Output for CCTV Security Products
  • 18W Switching Power Adapter with 100-240V AC, 12V/1.5A Output for CCTV Security Products
  • 18W Switching Power Adapter with 100-240V AC, 12V/1.5A Output for CCTV Security Products
18W Switching Power Adapter with 100-240V AC, 12V/1.5A Output for CCTV Security Products
18W Switching Power Adapter with 100-240V AC, 12V/1.5A Output for CCTV Security Products

18W Switching Power Adapter with 100-240V AC, 12V/1.5A Output for CCTV Security Products

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • High-price effective, reliability with plastic crust
    • Built-in, over-voltage, over-current and short-circuitprotections
    • Certificates: CE, CCC and UL
    • Input voltage: 100 to 240V AC
    • Frequency: 50/60Hz and 0.8A
    • Line regulation range: ±0.5 (maximum)
    • Start up current: 40A/230V AC
    • Output voltage: 12V/1.5A
    • Line regulation range: ±0.5% (maximum)
    • Ripple and noise (mVp-p): <1% of output voltage
    • Adjustable range of output voltage: +5/-3%
    • Start-up time: d1 second (input 240V AC)
    • Hold-up time: e20ms (input 240V AC)
  • Protections:
    • Overloading: 115 to 150% of rated power, when it happened, thepower shutdown automatically when trouble removed the powerrecovers itself
    • Over-voltage: 130 to 150% of rated voltage
    • Short-circuit
  • Specifications:
    • Insulation intensity
    • Input/output: 3,000V/10mA, 60 seconds
    • Insulation resistance
    • Input/output impedance: e50m©, 500V DC
    • Environmental requirements:
      • Operating temperature: 0 to 40°C
      • Operating humidity: 10 to 90% RH (no freezing dew)
      • Storage temperature: -20 to 85°C
      • Storage humidity: 10 to 95% RH (no freezing dew)
    • Elevation: <3,000m
    • Dimensions (L x W x H): 79 x 55 x 35mm
    • Weight: 230g
    • EMC: EN55022B, GB9254
  • High-price effective, reliability with plastic crust
  • Built-in, over-voltage, over-current and short-circuitprotections
  • Certificates: CE, CCC and UL
  • Input voltage: 100 to 240V AC
  • Frequency: 50/60Hz and 0.8A
  • Line regulation range: ±0.5 (maximum)
  • Start up current: 40A/230V AC
  • Output voltage: 12V/1.5A
  • Line regulation range: ±0.5% (maximum)
  • Ripple and noise (mVp-p): <1% of output voltage
  • Adjustable range of output voltage: +5/-3%
  • Start-up time: d1 second (input 240V AC)
  • Hold-up time: e20ms (input 240V AC)
  • Overloading: 115 to 150% of rated power, when it happened, thepower shutdown automatically when trouble removed the powerrecovers itself
  • Over-voltage: 130 to 150% of rated voltage
  • Short-circuit
  • Insulation intensity
  • Input/output: 3,000V/10mA, 60 seconds
  • Insulation resistance
  • Input/output impedance: e50m©, 500V DC
  • Environmental requirements:
    • Operating temperature: 0 to 40°C
    • Operating humidity: 10 to 90% RH (no freezing dew)
    • Storage temperature: -20 to 85°C
    • Storage humidity: 10 to 95% RH (no freezing dew)
  • Elevation: <3,000m
  • Dimensions (L x W x H): 79 x 55 x 35mm
  • Weight: 230g
  • EMC: EN55022B, GB9254
  • Operating temperature: 0 to 40°C
  • Operating humidity: 10 to 90% RH (no freezing dew)
  • Storage temperature: -20 to 85°C
  • Storage humidity: 10 to 95% RH (no freezing dew)
