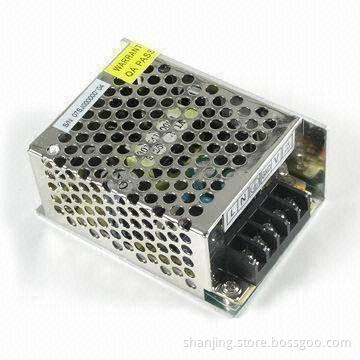

Open frame power supplies for CCTV camera with 48 Watts 12V 4A

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

High price effective, reliability with industry standards
Built-in over voltage, over current, and short circuitprotection
Inputs: 100-240V AC
Frequency: 50/60Hz
Line regulation range: ±0.5% maximum
Output: 12V4A
Line regulation range: +0.5%-3% maximum
Ripple and noise (Vpp): <1% of output voltage
Adjustable range of output voltage: ±3%
Turn-on time: d1s when AC input 240V and Io=100%
Hold-up time: e20ms when AC input 240V and Io=100%

Protections:

Over loading protection: 115%-150% of rated power, when thishappen, the power shuts down automatically, when trouble removed,and the power recovers itself
Over voltage protection: 130%-150% of rated voltage
Over current protection

Insulated intensity:

In-out: 1500V/5mA, 60s
In-ground: 1500V/5mA, 60s
Out-ground: 500V5mA, 60s

Insulated resistance:

In-out: e50m© DC 500V
In-ground: e50m© DC 500V
Out-ground: e50m© DC 500V

Environmental requirements:

Operating temperatures: 0-40°C
Operating humidity range: 10%-90% RH (no freezing dew)
Storage temperatures: -20°C to 85°C
Storage humidity range: 10%-95% RH (no freezing dew)

Elevation: <3,000m

Dimensions: 106 x 54 x 23mm

Weight: 140g

High price effective, reliability with industry standards

Built-in over voltage, over current, and short circuitprotection

Inputs: 100-240V AC

Frequency: 50/60Hz

Line regulation range: ±0.5% maximum

Output: 12V4A

Line regulation range: +0.5%-3% maximum

Ripple and noise (Vpp): <1% of output voltage

Adjustable range of output voltage: ±3%

Turn-on time: d1s when AC input 240V and Io=100%

Hold-up time: e20ms when AC input 240V and Io=100%

Over loading protection: 115%-150% of rated power, when thishappen, the power shuts down automatically, when trouble removed,and the power recovers itself

Over voltage protection: 130%-150% of rated voltage

Over current protection

In-out: 1500V/5mA, 60s

In-ground: 1500V/5mA, 60s

Out-ground: 500V5mA, 60s

Operating temperatures: 0-40°C

Operating humidity range: 10%-90% RH (no freezing dew)

Storage temperatures: -20°C to 85°C

Storage humidity range: 10%-95% RH (no freezing dew)
