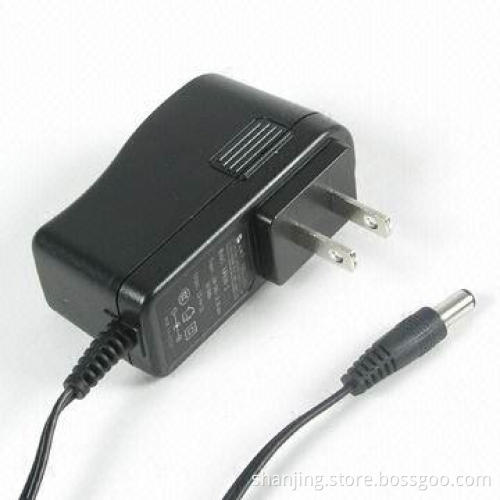

Linear Adapter with CF, CE, UL Marks, USA 2-pin Plug, Wall Mount Plug-in, 12V, 1A
  • Linear Adapter with CF, CE, UL Marks, USA 2-pin Plug, Wall Mount Plug-in, 12V, 1A
  • Linear Adapter with CF, CE, UL Marks, USA 2-pin Plug, Wall Mount Plug-in, 12V, 1A
Linear Adapter with CF, CE, UL Marks, USA 2-pin Plug, Wall Mount Plug-in, 12V, 1A
Linear Adapter with CF, CE, UL Marks, USA 2-pin Plug, Wall Mount Plug-in, 12V, 1A

Linear Adapter with CF, CE, UL Marks, USA 2-pin Plug, Wall Mount Plug-in, 12V, 1A

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • High price-effective, reliability with plastic crust
    • Built-in over-voltage, over-current and short-circuitprotections
    • Input voltage: 90 to 264V AC
    • Frequency: 50/60Hz, less than 0.2A
    • Line regulation range: 0.5 (maximum)
    • Start up current: cold start, 40A/230V AC
    • Output:
      • Line regulation range: 0.5% (maximum)
      • Ripple and noise (mVp-p): at most one percent of outputvoltage
      • Adjustable range of output voltage: 5V -3%
      • Start-up time: at most one second (input 240V AC and Io =100%)
      • Hold-up time: at least 20ms (input 240V AC and Io = 100%)
    • Protections:
      • Overloading range: 115-150% of rated power
      • Over-voltage range: 130 to 150% of rated voltage
      • Short-circuit
    • Environmental requirements:
      • Operating temperature: 0 to 40 degrees Celsius
      • Operating humidity range: 10 to 90% RH (no freezing dew)
      • Storage temperature: -20 to 85 degrees Celsius
      • Storage humidity range: 10 to 95% RH (no freezing dew)
      • Elevation: less than 3,000m
      • Dimensions: 74 x 46 x 28mm
      • Weight: 85g (approximately)
      • EMC: EN55022B, GB9254
      • With CE, FCC, and CCC marks
  • High price-effective, reliability with plastic crust
  • Built-in over-voltage, over-current and short-circuitprotections
  • Input voltage: 90 to 264V AC
  • Frequency: 50/60Hz, less than 0.2A
  • Line regulation range: 0.5 (maximum)
  • Start up current: cold start, 40A/230V AC
  • Output:
    • Line regulation range: 0.5% (maximum)
    • Ripple and noise (mVp-p): at most one percent of outputvoltage
    • Adjustable range of output voltage: 5V -3%
    • Start-up time: at most one second (input 240V AC and Io =100%)
    • Hold-up time: at least 20ms (input 240V AC and Io = 100%)
  • Protections:
    • Overloading range: 115-150% of rated power
    • Over-voltage range: 130 to 150% of rated voltage
    • Short-circuit
  • Environmental requirements:
    • Operating temperature: 0 to 40 degrees Celsius
    • Operating humidity range: 10 to 90% RH (no freezing dew)
    • Storage temperature: -20 to 85 degrees Celsius
    • Storage humidity range: 10 to 95% RH (no freezing dew)
    • Elevation: less than 3,000m
    • Dimensions: 74 x 46 x 28mm
    • Weight: 85g (approximately)
    • EMC: EN55022B, GB9254
    • With CE, FCC, and CCC marks
  • Line regulation range: 0.5% (maximum)
  • Ripple and noise (mVp-p): at most one percent of outputvoltage
  • Adjustable range of output voltage: 5V -3%
  • Start-up time: at most one second (input 240V AC and Io =100%)
  • Hold-up time: at least 20ms (input 240V AC and Io = 100%)
  • Overloading range: 115-150% of rated power
  • Over-voltage range: 130 to 150% of rated voltage
  • Short-circuit
  • Operating temperature: 0 to 40 degrees Celsius
  • Operating humidity range: 10 to 90% RH (no freezing dew)
  • Storage temperature: -20 to 85 degrees Celsius
  • Storage humidity range: 10 to 95% RH (no freezing dew)
  • Elevation: less than 3,000m
  • Dimensions: 74 x 46 x 28mm
  • Weight: 85g (approximately)
  • EMC: EN55022B, GB9254
  • With CE, FCC, and CCC marks
