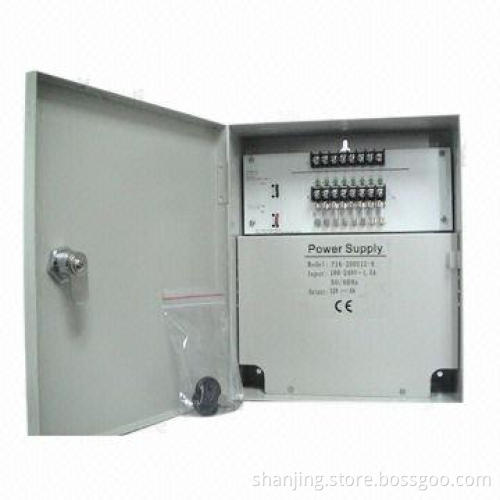

9/18-channel Power Supply Box for CCTV Camera Accessories with 60, 120, 240W Power

9/18-channel Power Supply Box for CCTV Camera Accessories with 60, 120, 240W Power

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

High price-effective, reliability, compliant with CEC andEMC
Built-in over-voltage, over-current, and short-circuitprotection
Input: 110/220V AC
Output: 12V DC, 10A, 9 output
Frequency: 50/60Hz
Line regulation range: ±0.5 (maximum)
Input current: <2.3A
Line regulation range: ±0.5% (maximum)
Ripple and noise: <100mVp-p
Adjustable range of output voltage: 5%, -3%
Start-up time: d3 seconds (AC input 240V and IO = 100%)
Hold-up time: e20m/second (AC input 240V and IO = 100%)

Protections:

Over loading protection: 110 to 160% of rated power, when ithappened, the power shuts down automatically, when trouble removedthe power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protection
Insulation intensity
Input/output: 3,000V/10mA, 60 seconds

Insulation resistance:

Input/output: e50m©, 500V DC

Environment requirements:

Operating temperature: 0 to 40°C
Operating humidity: 10 to 90% RH (no freezing dew)
Storage temperature: -20 to 70°C
Storage humidity: 10 to 95% RH (no freezing dew)
Elevation: <3,000m
Dimensions: 242 x 200 x 70mm
Weight: 1.7kg

High price-effective, reliability, compliant with CEC andEMC

Built-in over-voltage, over-current, and short-circuitprotection

Input: 110/220V AC

Output: 12V DC, 10A, 9 output

Frequency: 50/60Hz

Line regulation range: ±0.5 (maximum)

Input current: <2.3A

Line regulation range: ±0.5% (maximum)

Ripple and noise: <100mVp-p

Adjustable range of output voltage: 5%, -3%

Start-up time: d3 seconds (AC input 240V and IO = 100%)

Hold-up time: e20m/second (AC input 240V and IO = 100%)

Over loading protection: 110 to 160% of rated power, when ithappened, the power shuts down automatically, when trouble removedthe power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short-circuit protection

Insulation intensity

Input/output: 3,000V/10mA, 60 seconds

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 70°C

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions: 242 x 200 x 70mm

Weight: 1.7kg
