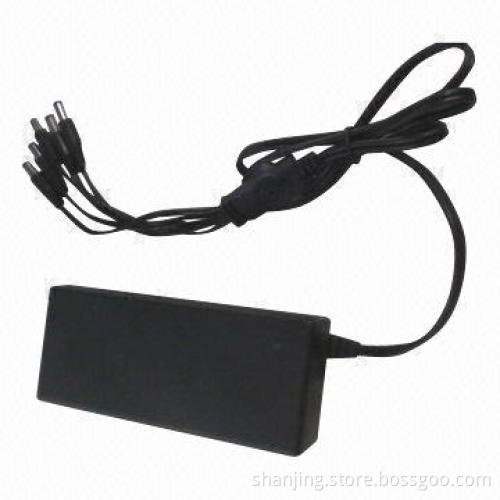

Power Adapter for CCTV Camera Accessories with 90W Power, 12V 7.5A/24V 3.7A
  • Power Adapter for CCTV Camera Accessories with 90W Power, 12V 7.5A/24V 3.7A
  • Power Adapter for CCTV Camera Accessories with 90W Power, 12V 7.5A/24V 3.7A
Power Adapter for CCTV Camera Accessories with 90W Power, 12V 7.5A/24V 3.7A
Power Adapter for CCTV Camera Accessories with 90W Power, 12V 7.5A/24V 3.7A

Power Adapter for CCTV Camera Accessories with 90W Power, 12V 7.5A/24V 3.7A

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Input:
      • Voltage: 100 to 240V AC
      • Frequency: 50/60Hz, 1A
      • Maximum line regulation range: 0.5
      • Start-up current: 40A/230V AC
    • Output:
      • Maximum line regulation range: 0.5%
      • Ripple and noise (mVp-p): <1% of output voltage
      • Adjustable range of output voltage: +5/-3%
      • Start-up time: 1 second (input 240V AC and Io = 100%)
      • Hold-up time: 20ms (input 240V AC and Io = 100%)
    • Protections:
      • Overload: 115 to 150% of rated power, when trouble occurs thepower shutdown automatically, when trouble removed the powerrecovers itself
      • Over-voltage: 130 to 150% of rated voltage
      • Short-circuit
    • Input to output:
      • Insulation intensity: 3,000V/10mA, 60 seconds
      • Insulation resistance: 500V DC
    • Environmental requirements:
      • Temperature:
        • Operating: 0 to 40°C
        • Storage: -20 to 85°C
      • Humidity range:
        • Operating: 10 to 90% RH (no freezing dew)
        • Storage: 10 to 95% RH (no freezing dew)
    • Elevation: <3,000m
    • With CE, UL, C-Tick and FCC certificates
    • Dimensions (L x W x H): 118 x 62 x 32mm
    • Weight: 400g
    • EMC standards: EN55022 and GB3954
  • Input:
    • Voltage: 100 to 240V AC
    • Frequency: 50/60Hz, 1A
    • Maximum line regulation range: 0.5
    • Start-up current: 40A/230V AC
  • Output:
    • Maximum line regulation range: 0.5%
    • Ripple and noise (mVp-p): <1% of output voltage
    • Adjustable range of output voltage: +5/-3%
    • Start-up time: 1 second (input 240V AC and Io = 100%)
    • Hold-up time: 20ms (input 240V AC and Io = 100%)
  • Protections:
    • Overload: 115 to 150% of rated power, when trouble occurs thepower shutdown automatically, when trouble removed the powerrecovers itself
    • Over-voltage: 130 to 150% of rated voltage
    • Short-circuit
  • Input to output:
    • Insulation intensity: 3,000V/10mA, 60 seconds
    • Insulation resistance: 500V DC
  • Environmental requirements:
    • Temperature:
      • Operating: 0 to 40°C
      • Storage: -20 to 85°C
    • Humidity range:
      • Operating: 10 to 90% RH (no freezing dew)
      • Storage: 10 to 95% RH (no freezing dew)
  • Elevation: <3,000m
  • With CE, UL, C-Tick and FCC certificates
  • Dimensions (L x W x H): 118 x 62 x 32mm
  • Weight: 400g
  • EMC standards: EN55022 and GB3954
  • Voltage: 100 to 240V AC
  • Frequency: 50/60Hz, 1A
  • Maximum line regulation range: 0.5
  • Start-up current: 40A/230V AC
  • Maximum line regulation range: 0.5%
  • Ripple and noise (mVp-p): <1% of output voltage
  • Adjustable range of output voltage: +5/-3%
  • Start-up time: 1 second (input 240V AC and Io = 100%)
  • Hold-up time: 20ms (input 240V AC and Io = 100%)
  • Overload: 115 to 150% of rated power, when trouble occurs thepower shutdown automatically, when trouble removed the powerrecovers itself
  • Over-voltage: 130 to 150% of rated voltage
  • Short-circuit
  • Insulation intensity: 3,000V/10mA, 60 seconds
  • Insulation resistance: 500V DC
  • Temperature:
    • Operating: 0 to 40°C
    • Storage: -20 to 85°C
  • Humidity range:
    • Operating: 10 to 90% RH (no freezing dew)
    • Storage: 10 to 95% RH (no freezing dew)
  • Operating: 0 to 40°C
  • Storage: -20 to 85°C
  • Operating: 10 to 90% RH (no freezing dew)
  • Storage: 10 to 95% RH (no freezing dew)
