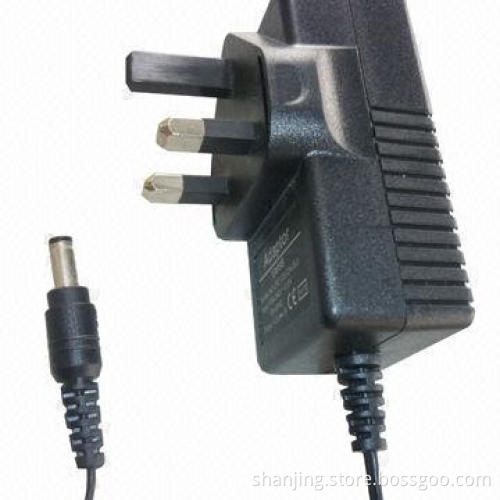

UK Plug 12V DC 1.5A Power Adapter with CE Approval, Security Alarm System Power Supply
  • UK Plug 12V DC 1.5A Power Adapter with CE Approval, Security Alarm System Power Supply
  • UK Plug 12V DC 1.5A Power Adapter with CE Approval, Security Alarm System Power Supply
UK Plug 12V DC 1.5A Power Adapter with CE Approval, Security Alarm System Power Supply
UK Plug 12V DC 1.5A Power Adapter with CE Approval, Security Alarm System Power Supply

UK Plug 12V DC 1.5A Power Adapter with CE Approval, Security Alarm System Power Supply

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • For security alarm system
    • Input: 100 to 240VAC
    • Output: 12V DC 1.5A
  • Features:
    • AC input between the two poles
    • SCP/OCP/OVP/OTP
    • Class II standard, high insulation
    • Power consumption (without load) is less than 0.5W
    • One year warranty
    • RoHS directive-compliant
    • Environment:
      • Working temperature: -10 to +40 degrees Celsius
      • Storage temperature: -25 to +75 degrees Celsius
      • Related humidity: 20 to 90% RH
      • Cooling method: cooling by air convection
      • Elevation: ≤3,000m
  • Electric characteristics:
    • Input:
      • Rated input voltage: 100 to 240V AC
      • Input voltage range: 90 to 264V AC
      • Input current: less than 0.8A
      • Power consumption: 0.5W, 100 to 240V AC input
      • Power factor: PF
      • Input frequency range: 50 to 60 HZ
      • Efficiency: greater than75%
    • Output:
      • Voltage without load: 12V +5% V DC
      • Load range: 0 to 1.5A
      • Ripple: less than 30mV
      • Peak: less than 80mV
      • Start time: less than 3S, 220V AC IO = 100%
      • Hold up time: >20mS, 220V AC IO = 100%
  • Protection:
    • OCP: rated current 150 to 200%
    • SCP: short circuit power is 0.5W min recoverable
    • OVP: 13V (unrecoverable)
  • For security alarm system
  • Input: 100 to 240VAC
  • Output: 12V DC 1.5A
  • AC input between the two poles
  • SCP/OCP/OVP/OTP
  • Class II standard, high insulation
  • Power consumption (without load) is less than 0.5W
  • One year warranty
  • RoHS directive-compliant
  • Environment:
    • Working temperature: -10 to +40 degrees Celsius
    • Storage temperature: -25 to +75 degrees Celsius
    • Related humidity: 20 to 90% RH
    • Cooling method: cooling by air convection
    • Elevation: ≤3,000m
  • Working temperature: -10 to +40 degrees Celsius
  • Storage temperature: -25 to +75 degrees Celsius
  • Related humidity: 20 to 90% RH
  • Cooling method: cooling by air convection
  • Elevation: ≤3,000m
  • Input:
    • Rated input voltage: 100 to 240V AC
    • Input voltage range: 90 to 264V AC
    • Input current: less than 0.8A
    • Power consumption: 0.5W, 100 to 240V AC input
    • Power factor: PF
    • Input frequency range: 50 to 60 HZ
    • Efficiency: greater than75%
  • Output:
    • Voltage without load: 12V +5% V DC
    • Load range: 0 to 1.5A
    • Ripple: less than 30mV
    • Peak: less than 80mV
    • Start time: less than 3S, 220V AC IO = 100%
    • Hold up time: >20mS, 220V AC IO = 100%
  • Rated input voltage: 100 to 240V AC
  • Input voltage range: 90 to 264V AC
  • Input current: less than 0.8A
  • Power consumption: 0.5W, 100 to 240V AC input
  • Power factor: PF
  • Input frequency range: 50 to 60 HZ
  • Efficiency: greater than75%
  • Voltage without load: 12V +5% V DC
  • Load range: 0 to 1.5A
  • Ripple: less than 30mV
  • Peak: less than 80mV
  • Start time: less than 3S, 220V AC IO = 100%
  • Hold up time: >20mS, 220V AC IO = 100%
  • OCP: rated current 150 to 200%
  • SCP: short circuit power is 0.5W min recoverable
  • OVP: 13V (unrecoverable)
