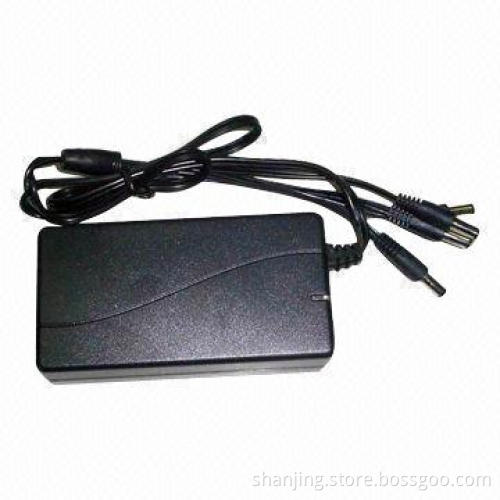

Laptop Adapter with 12V5A ,CE/UL/FCC Mark, Used in Security Systems

Laptop Adapter with 12V5A ,CE/UL/FCC Mark, Used in Security Systems

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Input:
- Voltage: 100 to 240V AC
- Frequency: 50/60Hz, 1.2A
- Line regulation range: ±0.5 (maximum)
- Start up current: 40A/230V AC
Output:
- 12V, 5A, 4 outputs
- Line regulation range: ±0.5% (maximum)
- Ripple and noise: Adjustable range of output voltage: +5%, -3%
- Start-up time: ≤1 second
- Hold-up time: ≥20ms
Protections:
- Over-loading protection: 115 to 150% of rated power, when it happened, the power shutdown automatically, when trouble removed the power recovers itself
- Over-voltage protection: 130 to 150% of rated voltage
- Short-circuit protection
Insulation intensity:
- Input to output: 3,000V/10mA, 60 seconds
Insulation resistance:
- Input to output: ≥50mΩ, 500V DC
Operating temperature: 0 to 40°C
Operating humidity: 10 to 90% RH (no freezing dew)
Storage temperature: -20 to 85°C
Storage humidity: 10 to 95% RH (no freezing dew)
Elevation: Dimensions (L x W x H): 122 x 60 x 37mm
Weight: 300g
EMC: EN55022B, GB9254

Features:

High-reliability with plastic crust
Built-in over-voltage, over-current and short-circuit protections
With CE, CCC and UL marks

Input:

Voltage: 100 to 240V AC
Frequency: 50/60Hz, 1.2A
Line regulation range: ±0.5 (maximum)
Start up current: 40A/230V AC

Output:

12V, 5A, 4 outputs
Line regulation range: ±0.5% (maximum)
Ripple and noise: Adjustable range of output voltage: +5%, -3%
Start-up time: ≤1 second
Hold-up time: ≥20ms

Protections:

Over-loading protection: 115 to 150% of rated power, when it happened, the power shutdown automatically, when trouble removed the power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Short-circuit protection

Insulation intensity:

Input to output: 3,000V/10mA, 60 seconds

Insulation resistance:

Input to output: ≥50mΩ, 500V DC

Operating temperature: 0 to 40°C

Operating humidity: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity: 10 to 95% RH (no freezing dew)

Elevation: Dimensions (L x W x H): 122 x 60 x 37mm

Weight: 300g

EMC: EN55022B, GB9254

Voltage: 100 to 240V AC

Frequency: 50/60Hz, 1.2A

Line regulation range: ±0.5 (maximum)

Start up current: 40A/230V AC

12V, 5A, 4 outputs

Line regulation range: ±0.5% (maximum)

Ripple and noise: Adjustable range of output voltage: +5%, -3%

Start-up time: ≤1 second

Hold-up time: ≥20ms

Over-loading protection: 115 to 150% of rated power, when it happened, the power shutdown automatically, when trouble removed the power recovers itself

Over-voltage protection: 130 to 150% of rated voltage

Short-circuit protection

Input to output: 3,000V/10mA, 60 seconds

Input to output: ≥50mΩ, 500V DC

High-reliability with plastic crust

Built-in over-voltage, over-current and short-circuit protections

With CE, CCC and UL marks
