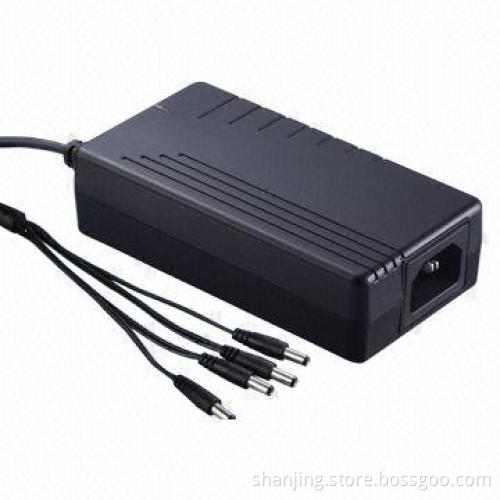

AC/DC Adapter, 12V, 5A, 60W, Used for Security System, LED Laptop

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Output:

Protections:

Overloading: 115 to 150% of rated power, when it happened, thepower shuts down automatically, and when trouble removed the powerrecovers itself

Over-voltage: 130 to 150% of rated voltage

Short-circuit

Input:

Voltages: 100V AC to 240V

Frequency: 50/60Hz, 0.8A

Line regulation range: ±0.5 (maximum)

Start up current: 40A/230V AC

Line regulation range: ±0.5% (maximum)

Ripple and noise (mVp-p): ≤1% of output voltage

Adjustable range of output voltage: +5, 3%

Start-up time: d1 second (input 240V AC and Io = 100%)

Hold-up time: e20 minutes (input 240V AC and Io = 100%)

Insulation intensity:

Input output: 3,000V/10mA, 60 seconds

Insulation resistance:

Environmental requirements:

Operating temperatures: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperature range: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)

Elevation: <3,000m

Dimensions (L x W x H): 118 x 62 x 32mm

Weight: 200g

EMC: EN55022, GB3954
