Pocket Digital Multimeter with Non-contact Voltage Detection Identifies Live Circuits

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before shipment or L/C at sight

Product Description

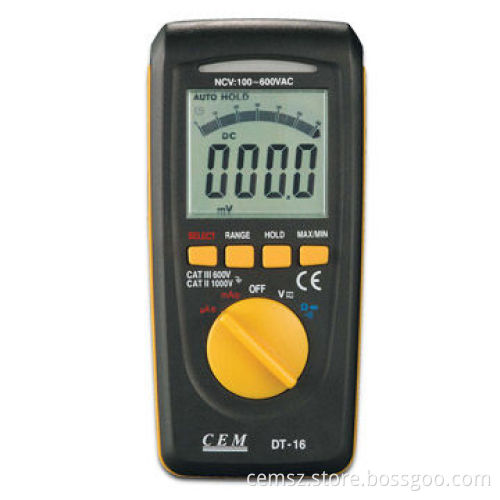

DT-16 is a new pocket digital multimeter with rubberprotection, over sized high contrast

6000 counts LCD display with minimum/maximum, data hold andnon-contact detection. It is conformance to the EN61010-1, CATII600V safety standard

Features:

Non-contact voltage detection identifies live circuits

Large high contrast 6000 counts LCD digital display counts withanalog bargraph

Relative and data hold function

Auto power off and over range and low battery indication

Built-in storage compartment for integrated test leads

Maximum input voltage: 600V AC/DC

Diode test current: 1mA

Open circuit voltage: 2V typical

Continuity check: audible signal if the resistance is<30

Display 4,000 count 3 to 4/5 digit LCD

Over range indication: LCD displays OL

Polarity: minus (-) sign for negative polarity

Low battery indication BAT symbol indicates low batterycondition

Input impedance: 7.5M Ohms (VDC and VAC)

AC response: average responding

ACV bandwidth: 50Hz to 400Hz

Auto power off: 15 minutes (approximately)

Batteries: two 1.5V LR44

Operating temperature: 32 to 104 degrees F

Storage temperature: 14 to 122 degrees F (-10oC to 50oC)

Weight: 108g

Size: 125 x 58.5 x 21.5mm

Accessories: test leads, wallet style case and one 1.5V L44button battery
