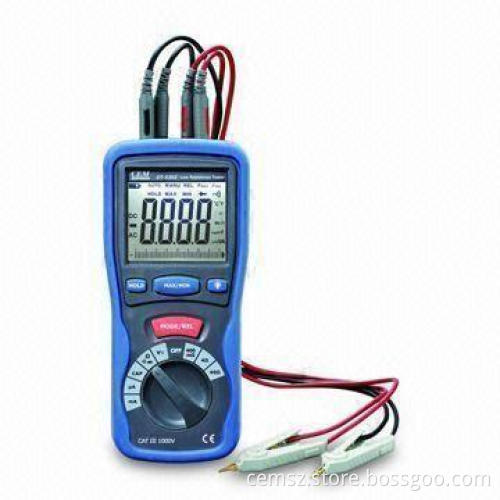

DMM with Kelvin (4-wire) Small Resistance Measurement

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before shipment or L/C at sight

Product Description

Features:

Four terminal Kelvin measurement

4000 counts digital LCD display with backlit

high resolution to 0.1m© with test current to 200mA

Relative zero and data hold

overload protection on all ranges

low battery indication

MAX/MIN recording mode

Diode check and continuity test

Low resistance range: 400m©, 4©, 40©

Resolution: 0.1m©, 1m©, 0.01©

accuracy: ±(1.0%+10d), ±(1.0%+5d),±(1.0%+5d)

current: 200Ma, 20 mA, 2 mA

OHMS Range: 400©, 4K©, 40K©, 400K©,4M©, 40M©

Resolution: 0.1©, 1©, 10©, 100©, 1K©,10K©

Accuracy: ± (1.0%+4d), ±(1.5%+2d),±(2.5%+3d), ±(3.5%+5d)

Current range: 400¼A, 4,000¼A, 40mA, 400 mA

Resolution: 0.1¼A, 1¼A, 0.01mA, 0.1mA

Accuracy: ±(1.5%+5d)

DC voltage range: 400mV, 4V, 40V, 400V, 1,000V

Resolution: 0.1mV, 1mV, 0.01V, 0.1V, 1V

Accuracy: ±1.0%+5d), ±(1.2%+5d)

AC voltage range: 400mV, 4V, 40V, 400V, 1,000V

Resolution: 0.1mV, 1mV, 0.01V, 0.1V, 1V

Accuracy: ±(1.2%+10d), ±(1.5%+10d)

Capacitance range: 4nF, 40nF, 400nF, 4uF, 40uF, 400uF, 4mF,40mF

Resolution: 1pF, 10pF, 0.1nF, 1nF, 10nF, 0.1uF, 1uF, 10uF

Accuracy: ±(5%+0.05nF), ±(5.0%+20d),±(3.0%+10d), ±(4.0%+10d), ±(10%+10d)

Size (H x W x D): 200 x 92 x 50mm

Weight: 700g

Accessory: 4-wire test leads, "AAA" x6 batteries, gift box withcarrying case
