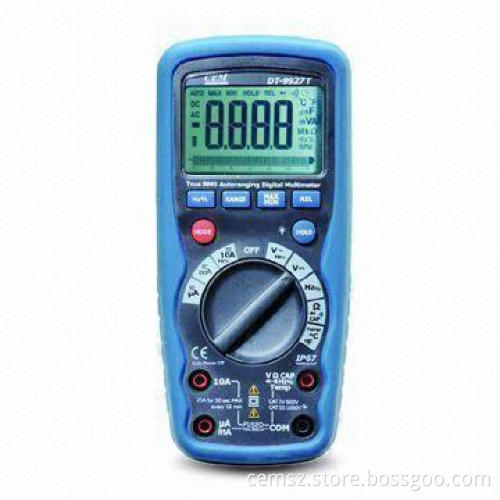

Digital Multimeter with True RMS, 6,000 Digital Display Counts with Backlit
  • Digital Multimeter with True RMS, 6,000 Digital Display Counts with Backlit
Digital Multimeter with True RMS, 6,000 Digital Display Counts with Backlit

Digital Multimeter with True RMS, 6,000 Digital Display Counts with Backlit

Get Latest Price
Payment Type:
T/T before Shipment or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T before Shipment or L/C
Product Description
Product Description
  • Features:
    • 6,000 digital display counts with backlit
    • Analog barograph, segment
    • Data hold, maximum/minimum recording mode
    • Auto ranging, manual range selection
    • Auto power off and low battery indication
    • Measurement rate: 2 times per second/nominal
    • Wide capacitance range (1,000mF)
    • True RMS measurement
  • Specification:
    • DC voltage measurement:
      • Range: 600mV/6V/60V/600V/1,000V
      • Basic accuracy: ±0.09%
      • Resolution: 0.1mV/0.001/0.01/0.1 and 1V
    • AC voltage measurement:
      • Range: 6/60/600 and 1,000V
      • Basic accuracy: ±0.8%
      • Resolution: 0.001/0.01/0.1 and 1V
    • DC current measurement:
      • Range: 600/6,000uA/60/600mA/6/10A
      • Basic accuracy: ±1.0%
      • Resolution: 0.1/1uA/0.01/0.1mA/0.001/0.01A
    • AC current measurement:
      • Range: 600/6000uA/60/600mA/6/10A
      • Basic accuracy: ±1.5%
      • Resolution: 0.1/1uA/0.01/0.1mA/0.001/0.01A
    • Resistance measurement:
      • Range: 600Ω/6/60/600kΩ/6/60MΩ
      • Basic accuracy: ±0.3%
      • Resolution:0.1Ω/0.001/0.01/0.1kΩ/0.001/0.01MΩ
    • Capacitance measurement:
      • Range: 60/600nF/6/60/600/1,000uF
      • Basic accuracy: ±3.0%
      • Resolution: 0.01/0.1nF/0.001/0.01/0.1/1uF
    • Temperature measurement:
      • Maximum: 760°C/1,400°F
      • Basic accuracy: ±3.0%
      • Resolution: ±1°C/°F
    • Frequency measurement:
      • Range: 9.999/99.99/999.9Hz/9.999/99.99/999.9/9.999MHz
      • Basic accuracy: ±0.1%
      • Resolution: 0.001/0.01/ 0.1Hz/0.001/0.01/0.1kHz/0.001MHz
    • Frequency (electrical) measurement:
      • Range: 10.00 to 400/0.01Hz
      • Basic accuracy: ±0.5&#
    • Duty cycle measurement:
      • Maximum: 99%
      • Basic accuracy: ±1.2%
      • Resolution: 0.1%
    • Diode test: test current of 0.9mA maximum/open circuit voltage2.8V DC typical
    • Continuity check: audible signal will sound if the resistanceis less than 100Ω (approximately)/test current<0.35mA
  • 6,000 digital display counts with backlit
  • Analog barograph, segment
  • Data hold, maximum/minimum recording mode
  • Auto ranging, manual range selection
  • Auto power off and low battery indication
  • Measurement rate: 2 times per second/nominal
  • Wide capacitance range (1,000mF)
  • True RMS measurement
  • DC voltage measurement:
    • Range: 600mV/6V/60V/600V/1,000V
    • Basic accuracy: ±0.09%
    • Resolution: 0.1mV/0.001/0.01/0.1 and 1V
  • AC voltage measurement:
    • Range: 6/60/600 and 1,000V
    • Basic accuracy: ±0.8%
    • Resolution: 0.001/0.01/0.1 and 1V
  • DC current measurement:
    • Range: 600/6,000uA/60/600mA/6/10A
    • Basic accuracy: ±1.0%
    • Resolution: 0.1/1uA/0.01/0.1mA/0.001/0.01A
  • AC current measurement:
    • Range: 600/6000uA/60/600mA/6/10A
    • Basic accuracy: ±1.5%
    • Resolution: 0.1/1uA/0.01/0.1mA/0.001/0.01A
  • Resistance measurement:
    • Range: 600Ω/6/60/600kΩ/6/60MΩ
    • Basic accuracy: ±0.3%
    • Resolution:0.1Ω/0.001/0.01/0.1kΩ/0.001/0.01MΩ
  • Capacitance measurement:
    • Range: 60/600nF/6/60/600/1,000uF
    • Basic accuracy: ±3.0%
    • Resolution: 0.01/0.1nF/0.001/0.01/0.1/1uF
  • Temperature measurement:
    • Maximum: 760°C/1,400°F
    • Basic accuracy: ±3.0%
    • Resolution: ±1°C/°F
  • Frequency measurement:
    • Range: 9.999/99.99/999.9Hz/9.999/99.99/999.9/9.999MHz
    • Basic accuracy: ±0.1%
    • Resolution: 0.001/0.01/ 0.1Hz/0.001/0.01/0.1kHz/0.001MHz
  • Frequency (electrical) measurement:
    • Range: 10.00 to 400/0.01Hz
    • Basic accuracy: ±0.5&#
  • Duty cycle measurement:
    • Maximum: 99%
    • Basic accuracy: ±1.2%
    • Resolution: 0.1%
  • Diode test: test current of 0.9mA maximum/open circuit voltage2.8V DC typical
  • Continuity check: audible signal will sound if the resistanceis less than 100Ω (approximately)/test current<0.35mA
  • Range: 600mV/6V/60V/600V/1,000V
  • Basic accuracy: ±0.09%
  • Resolution: 0.1mV/0.001/0.01/0.1 and 1V
  • Range: 6/60/600 and 1,000V
  • Basic accuracy: ±0.8%
  • Resolution: 0.001/0.01/0.1 and 1V
  • Range: 600/6,000uA/60/600mA/6/10A
  • Basic accuracy: ±1.0%
  • Resolution: 0.1/1uA/0.01/0.1mA/0.001/0.01A
  • Range: 600/6000uA/60/600mA/6/10A
  • Basic accuracy: ±1.5%
  • Resolution: 0.1/1uA/0.01/0.1mA/0.001/0.01A
  • Range: 600Ω/6/60/600kΩ/6/60MΩ
  • Basic accuracy: ±0.3%
  • Resolution:0.1Ω/0.001/0.01/0.1kΩ/0.001/0.01MΩ
  • Range: 60/600nF/6/60/600/1,000uF
  • Basic accuracy: ±3.0%
  • Resolution: 0.01/0.1nF/0.001/0.01/0.1/1uF
  • Maximum: 760°C/1,400°F
  • Basic accuracy: ±3.0%
  • Resolution: ±1°C/°F
  • Range: 9.999/99.99/999.9Hz/9.999/99.99/999.9/9.999MHz
  • Basic accuracy: ±0.1%
  • Resolution: 0.001/0.01/ 0.1Hz/0.001/0.01/0.1kHz/0.001MHz
  • Range: 10.00 to 400/0.01Hz
  • Basic accuracy: ±0.5&#
  • Maximum: 99%
  • Basic accuracy: ±1.2%
  • Resolution: 0.1%
