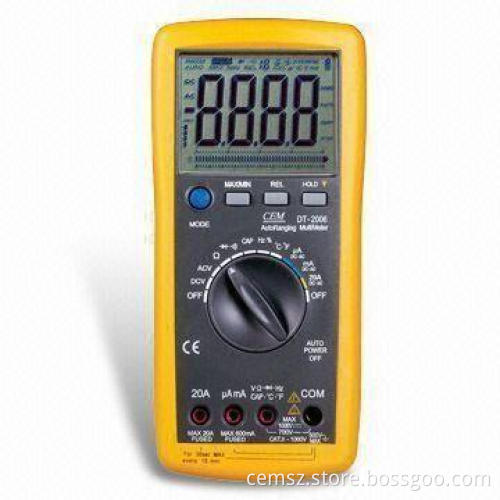

Digital Multimeter with Analog Bargraph, Available in Auto-ranging Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before Shipment or L/C

Product Description

Features:

Specifications:

DC voltage measurement:
- Range: 600.00mV, 6.000V, 60.00V, 600.0V, 1000V
- Basic accuracy: ± (0.5%+2d)
- Resolution: 0.1mV
AC voltage measurement:
- Range: 6.000V, 60.00V, 600.0V, 700V
- Basic accuracy: ± (1.0%+3d)
- Resolution: 1mV
DC current measurement:
- Range: 600.0uA, 6000uA, 60.00mA, 600.0mA, 6A, 20A
- Basic accuracy: ± (1.5%+3d)
- Resolution: 0.1uA
AC current measurement:
- Range: 600.0uA, 6000uA, 60.00mA, 600.0mA, 6A, 20A
- Basic accuracy: ± (2.0%+3d)
- Resolution: 0.1uA
Resistance measurement:
- Range: 600.0&, 6.000k&, 60.00k&, 600.0k&,6.000M&, 60.00M&, 600.00M&, 6000M&
- Basic accuracy: ± (1.2%+2d)
- Resolution: 0.1&
Capacitance measurement:
- Range: 40.00nF, 400.0nF, 4.000uF, 40.00uF, 400.00uF,4000uF
- Basic accuracy: ± (4.0%+3d)
- Resolution: 10pF
Frequency measurement:
- Range: 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1000kHz, 10MHz,20MHz
- Basic accuracy: ± (1.5%+5d)
- Resolution: 0.001Hz
Temperature measurement:
- Range: -20 to +760/-4 to +1400
- Basic accuracy: +3% of rdg +7dgts
- Resolution: 1 /
Diode check and continuity test:
- Diode test: test current of 1mA maximum, open circuit voltage2.8V DC typical
- Continuity check: audible signal will sound if the resistanceis less than 100& (approx.), test current <1.5mA

6000 digital display counts with backlit

Data hold, max/min recording mode

Full overload protection on all ranges

Auto-ranging function

Analog bargraph/61 segments

BAT symbolic sign

DC voltage measurement:

AC voltage measurement:

DC current measurement:

AC current measurement:

Resistance measurement:

Capacitance measurement:

Frequency measurement:

Temperature measurement:

Diode check and continuity test:

Diode test: test current of 1mA maximum, open circuit voltage2.8V DC typical
Continuity check: audible signal will sound if the resistanceis less than 100& (approx.), test current <1.5mA

Range: 600.00mV, 6.000V, 60.00V, 600.0V, 1000V

Basic accuracy: ± (0.5%+2d)

Resolution: 0.1mV

Range: 6.000V, 60.00V, 600.0V, 700V

Basic accuracy: ± (1.0%+3d)

Resolution: 1mV

Range: 600.0uA, 6000uA, 60.00mA, 600.0mA, 6A, 20A

Basic accuracy: ± (1.5%+3d)

Resolution: 0.1uA

Range: 600.0uA, 6000uA, 60.00mA, 600.0mA, 6A, 20A

Basic accuracy: ± (2.0%+3d)

Resolution: 0.1uA
