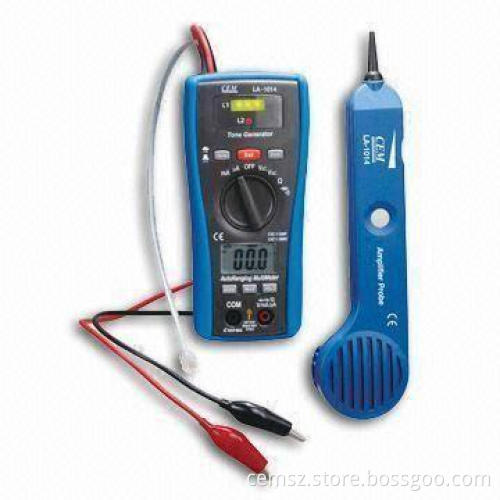

Two-in-one LAN Tester and Digital Multimeter, with Built-in Speaker on Probe

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before shipment or L/C at sight

Product Description

Features:

Insulated inductive probe tip prevents shorting conductors
Test include wire trace, continuity test,clear/busy/ringing
Line test and tip/ring identification
Alligatot clips for non-terminated cables and modularconnectors for direct connections
To telephone and international wiring
Selectable continuous or variable tone generation
Built-in speaker on probe with sensitivity control
RJ45 and RJ11 modular connectors

Specifications:

DC voltage:
- Range: 200mV, 2.000V, 20.00V, 200.0V and 600V
- Accuracy: ±(0.5rdg+3d), ±(1.0rdg+3d)
AC voltage (50-60Hz):
- Range: 2.000V, 20.00V, 200.0V and 600V
- Accuracy: ±(1.0rdg+5d), ±(1.5rdg+10d)
DC current range: 200¼A, 2000¼A, 20.00mA,200.0mA
Accuracy: ±(1.5rdg+3d), ±(2.0rdg+3d)
AC current range: 200¼A, 2000¼A, 20.00mA,200.0mA
Accuracy: ±(1.8rdg+8d), ±(2.5rdg+8d)
Resistance range: 200©, 2K©, 20K©, 200K©,2M©, 20M©
Accuracy: ±(0.8rdg+5d), ±(1.2rdg+3d),±(2.0rdg+5d), ±(5.0rdg+8d)
Dimensions:
- Probe: 9 x 2.3 x 1" (228 x 57 x 25mm)
- Generator: 2.5 x 2.5 x 1.5" (64 x 64 x 38mm)
Weight: 0.61bs (272g)
