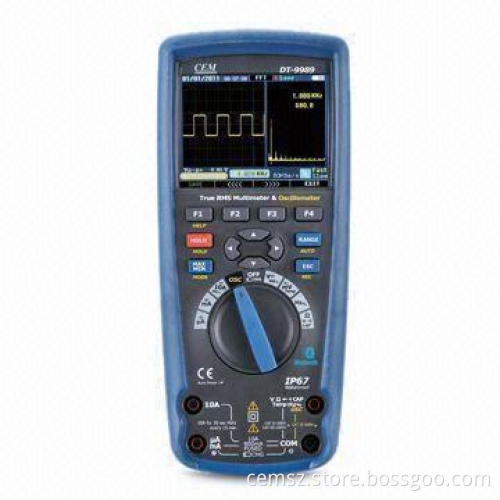

Professional True RMS Industrial Multimeter/Oscilloscopes with TFT Color LCD Display

Get Latest Price

Payment Type:: T/T before Shipment or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T before Shipment or L/C

Product Description

Professional true RMS industrial digital multimeters withoscilloscope functions and TFT color LCD display, providing fastA/D converting sampling time, high accuracy, built-in dataloggingand trend capture features

Can trace any interrupted problems of the equipments and watchon without person

Providing Bluetooth technology and memory the datasheets

Safe measurements with double molded plastic housing design andIP67 waterproof function

Features:

Large 50,000 count 320 x 240 TFT color LCD display
Logging function with Trend Capture for easy review of loggeddata
Bluetooth PC interface for easy data transfer
True-RMS measurements AC, AC + DC
Internal memory up to 180h
Records events and trends
Saves measurements
A/D convert fast sampling time
Peak capture (records transients as fast as 250¼s)
Minimum/maximum/average with time stamp (records signalfluctuations)
IR rating: 67

Specifications:

Oscilloscope functions
Display size: 3.5 inches color LCD, 320 x 240 pixels
Bandwidth: 10MHz
Real-time sample rate: 50MS/s
Rise time: 17.5ns
Channel: 1
Vertical sensitivity: 50 to 100V/div
Trigger mode: free run, falling edge, rising edge
Trigger source: internal
Trigger coupling: AC/DC
Input impedance: 1M©/200pF
Maximum input voltage: 400V (peak)
Cursor measurement: voltage and time
True RMS Multimeter Functions
Voltage DC: 1,000V maximum resolution: 1¼V, accuracy:±(0.025%+5)
Voltage AC: 1,000V Max resolution: 1¼V; accuracy:±(0.4%+40)
Current DC: 10A maximum resolution: 0.01¼A,accuracy:±(0.15%+2)
Current AC: 10A maximum resolution: 0.01¼A,accuracy:±(0.07%+5)
Temperature: -200 to 1,350°C maximum resolution: 0.1°C,accuracy: ±(1.0%+1°C)
Resistance: 50M© maximum resolution: 0.1©, accuracy:± (0.05% +2)
capacitance: 10mF maximum resolution: 0.001nS,accuracy:±(1.0% +5)
Frequency: 1MHz maximum resolution: 0.01Hz, accuracy: ±(0.005% +1)
Diode and continuity
PC Bluetooth

Large 50,000 count 320 x 240 TFT color LCD display

Logging function with Trend Capture for easy review of loggeddata

Bluetooth PC interface for easy data transfer

True-RMS measurements AC, AC + DC

Internal memory up to 180h

Records events and trends

Saves measurements

A/D convert fast sampling time

Peak capture (records transients as fast as 250¼s)

Minimum/maximum/average with time stamp (records signalfluctuations)

IR rating: 67

Oscilloscope functions

Display size: 3.5 inches color LCD, 320 x 240 pixels

Bandwidth: 10MHz

Real-time sample rate: 50MS/s

Rise time: 17.5ns

Channel: 1

Vertical sensitivity: 50 to 100V/div

Trigger mode: free run, falling edge, rising edge

Trigger source: internal

Trigger coupling: AC/DC

Maximum input voltage: 400V (peak)

Cursor measurement: voltage and time

True RMS Multimeter Functions

Voltage DC: 1,000V maximum resolution: 1¼V, accuracy:±(0.025%+5)

Voltage AC: 1,000V Max resolution: 1¼V; accuracy:±(0.4%+40)

Current DC: 10A maximum resolution: 0.01¼A,accuracy:±(0.15%+2)

Current AC: 10A maximum resolution: 0.01¼A,accuracy:±(0.07%+5)

Temperature: -200 to 1,350°C maximum resolution: 0.1°C,accuracy: ±(1.0%+1°C)

capacitance: 10mF maximum resolution: 0.001nS,accuracy:±(1.0% +5)

Frequency: 1MHz maximum resolution: 0.01Hz, accuracy: ±(0.005% +1)

Diode and continuity

PC Bluetooth
