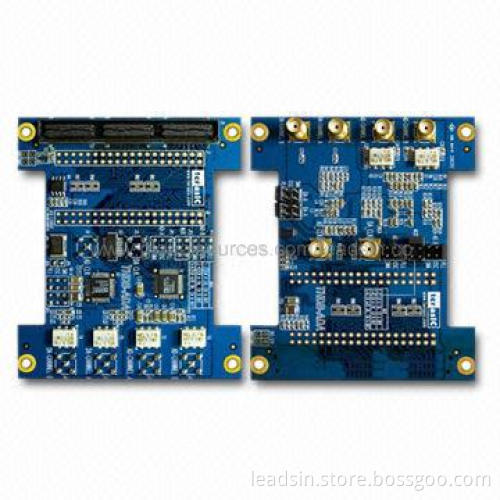

Best PCB Assembly House, Prototype PCB Manufacturer, with 1 to 20 Layers and 1 to 3oz Copper

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Paypal

Product Description

Thickness: 1.6mm

Applications: projector or projecting apparatus

Trace size: 0.1mm (minimum)

Drill: 0.2mm (minimum)

With blind and buried holes

Layers: 1 to 22

Board finished thicknesses: 0.2 to 7.0mm

Materials: FR-4, CEM-3, high TG, halogen-free FR4 and Rogers

Finished board dimensions: 580 x 900mm (maximum)

Hole size: 4 mils (0.1mm) (minimum)

Trace width/space: 3.5/3.5 mils (minimum)

Surface finishes/treatments: HASL, lead-free HASL, immersion gold, gold-plated, immersion silver, immersion tin and OSP

Copper thicknesses: 0.5 to 6oz

Solder mask colors: green, yellow, black, white, red and blue

Copper thickness in hole: >18um

Inner packaging: plastic bag (vacuum packing)

Outline tolerance: ±0.13mm

Hole size tolerance:

PTH: ±0.076

NPTH: ±0.05mm
