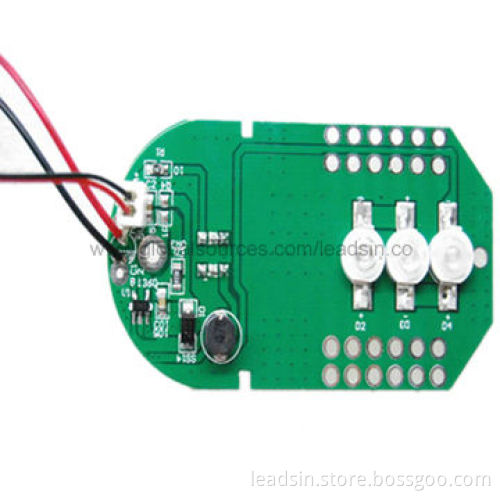

Double Sided Rigid-flex PCB with 1 to 30 Layers and 0.21 to 7.0mm Board Finish Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Agree PCB Gerber file

One-stop for PCB design, copy, assembly, test, components

Lead-time: 7 to 10 days

PCB process capability

Layers: 1 to 30

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free, Rogers

Maximum finishing board size: 23 x 25 (580 x 900mm)

Minimum drilled hole size: 3 mils (0.075mm)

Minimum line width: 3 mils (0.075mm)

Minimum line spacing: 3 mils (0.075mm)

Surface finishing/treatment: HASL/HASL lead-free, HAL, chemical tin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076

NPTH: ±0.05
