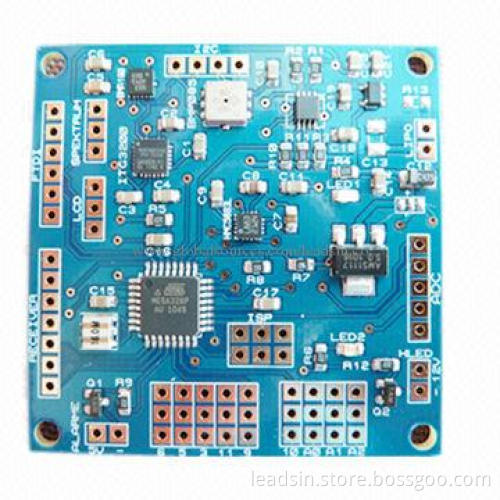

PCB Manufacturer from 1 to 22 Layers, 0.21-6.0mm Board Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, L/C or PayPal

Product Description

Fabrication data input: Gerber data RS-274-X or RS-274-D with aperture list and drill files design file with protel, PAD2000, power PCB, ORCAD

Materials: FR-4, high Tg Fr4, high-frequency board (Teflon, Rogers, Arlon),

Halogen-free, rigid-flexible board flammability class: 94V-0

Board thickness: 0.21-6.0mm

Layer counts:1-22 layers

Surface finishes: HASL, lead-free HASL, immersion gold, gold finger, gold plating, OSP

Minimum line width/spacing: 4/4-mil

Minimum hole size: 0.25mm

Minimum solder mask gap between dam: 4-mil

Maximum panel size: 20 x 30-inch

PCBA design and making basing on samples or BOM and PCB files

We also can reverse PCB for you according to your samples

PCB assembly

Consumer, computer, communication, industrial, security, power, traffic control board SMD, DIP, AI OEM/ODM assembly

Complete product including plastics, metal works, microchip programming and functional testing ISO 9001/9002 cerfication

Process small order, high-mixed accept turn-key service including components procurement, produce, quality check, package and logistics
