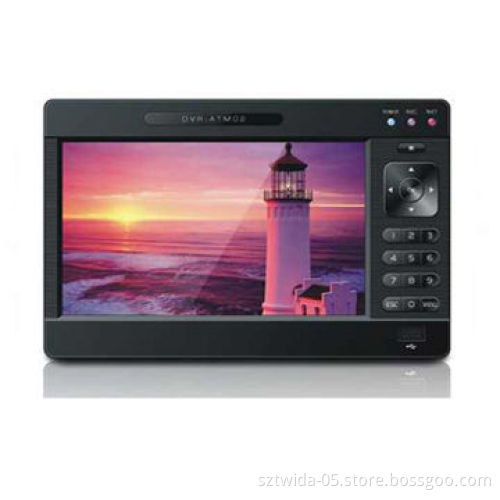

7-inch LCD ATM DVRNew
  • 7-inch LCD ATM DVRNew
7-inch LCD ATM DVRNew

7-inch LCD ATM DVRNew

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Overview:
  • H.264 compression
  • 7-inch LCD
  • Text overlay
  • PTZ camera control in local and remote area
  • Pentaplex: live, record, playback, back-up and network at the same time
  • Backup: CD-RW (option: DVD-RW), USB 2.0 and NET backup supported
  • Technical specifications:
  • Compression standard: MPEG4/H.264
  • Resolution:
  • Preview resolution: 704 x 576 (PAL), 720 x 480 (NTSC)
  • Playback resolution: 4 x D1
  • Frames: 1F/S ~ 30F/S adjustable
  • Hard disk: 2 SATA hard disk interface (support capacity from 40G to 3T in total)
  • Video input: 4 channels, BNC, 1.0V p-p/75Ω
  • Composite video output: 2 channels, BNC, 1.0V p-p/75Ω
  • VGA interface: 1 VGA, resolution: 800x600/60Hz, 1024x768/60Hz
  • Audio input: 4 channels, RCA
  • Audio output: 1 channel, RCA
  • Alarm input: 4 channels, trigger closed without voltage, open or closed
  • Alarm output: 2 channels, trigger closed without voltage, open or closed
  • Alarm mode: sensor input, motion detection, video loss, full disk space
  • Network: Ethernet (10/100M )LAN WAN and ADSL
  • Control way: USB2.0 mouse, remote control, PTZ, camera, RS485 x1
  • Backup: USB2.0, CDRW, DVDRW and network
  • Power supply: 220V±10%/50Hz 180W
  • Consumption: 50W without HDD
  • Working environment temperature: +5~+50, humid <90%
  • Device dimension: 240*200*140 (W*D*H)
  • G.W: 5kg
