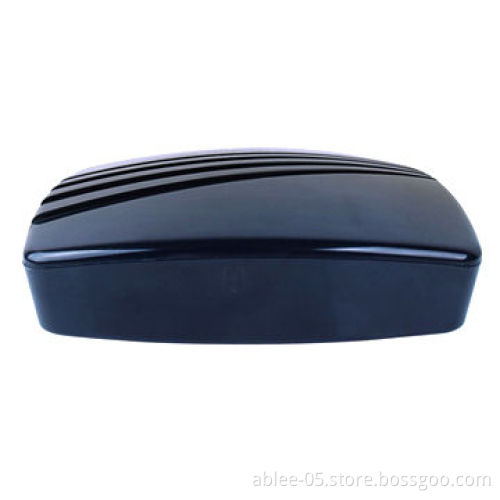

DVB-T2 Digital TV Receiver with RF Modulator, 16:9 and 4:3 Aspect ratio

DVB-T2 Digital TV Receiver with RF Modulator, 16:9 and 4:3 Aspect ratio

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main features:

Fully compliant with DVB-T2/DVB-T mark
Supports MPEG-2, MPEG-4, H.264 decoder
Terrestrial receiver standard: EN 302755/300 744 compliant
Frequency range: VHF-H 174-230MHz, UHF 470-860MHz
1,080 pixels/1,080i/720 pixels/576 pixels/480 pixels/576i/480ioutput supported
Auto and manually scan all available TV and radio channels
HDMI1.3 interface
Aspect ratio: 16:9 and 4:3
Supports Teletext (VBI or OSD)
Multi-language OSD and subtitle available
USB2.0 supports PVR, time-shift, playback and softwareupgrade
Supports external HDD via USB, power wanted if necessary
7-day EPG function
Time-shift function
1,000 channels (Maximum)
Parental lock
Multiple PLP

Modulator features:

With EN300744 mark
FFT mode: 2, 8K
Bandwidth: 6, 7, 8M
Constellation: QPSK, 16QAM, 64QAM
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
MER: e42dB
RF frequency: 30-960MHz, 1kHz step
RF out: 2 x RF COFDM DVB-T out (2 carriers combinedoutput)
Double output bandwidth
RF output level: -30--10dbm (81-97 dBµV), 0.1dB step
Size of the machine: 120 x 95 x 35mm

Accessories:

Remote control
User's manual
RCA cable
Adapter(12V/1.5A)

Loading:

20ft GP 12,000 pieces
40 ft GP 24,000 pieces
40ft HQ 29,920 pieces

Fully compliant with DVB-T2/DVB-T mark

Supports MPEG-2, MPEG-4, H.264 decoder

Terrestrial receiver standard: EN 302755/300 744 compliant

Frequency range: VHF-H 174-230MHz, UHF 470-860MHz

1,080 pixels/1,080i/720 pixels/576 pixels/480 pixels/576i/480ioutput supported

Auto and manually scan all available TV and radio channels

HDMI1.3 interface

Aspect ratio: 16:9 and 4:3

Supports Teletext (VBI or OSD)

Multi-language OSD and subtitle available

USB2.0 supports PVR, time-shift, playback and softwareupgrade

Supports external HDD via USB, power wanted if necessary

7-day EPG function

Time-shift function

1,000 channels (Maximum)

Parental lock

Multiple PLP

With EN300744 mark

FFT mode: 2, 8K

Bandwidth: 6, 7, 8M

Constellation: QPSK, 16QAM, 64QAM

Guard interval: 1/4, 1/8, 1/16, 1/32

FEC: 1/2, 2/3, 3/4, 5/6, 7/8

MER: e42dB

RF frequency: 30-960MHz, 1kHz step

RF out: 2 x RF COFDM DVB-T out (2 carriers combinedoutput)

Double output bandwidth

RF output level: -30--10dbm (81-97 dBµV), 0.1dB step

Size of the machine: 120 x 95 x 35mm

Remote control

User's manual

RCA cable

Adapter(12V/1.5A)

20ft GP 12,000 pieces

40 ft GP 24,000 pieces

40ft HQ 29,920 pieces
