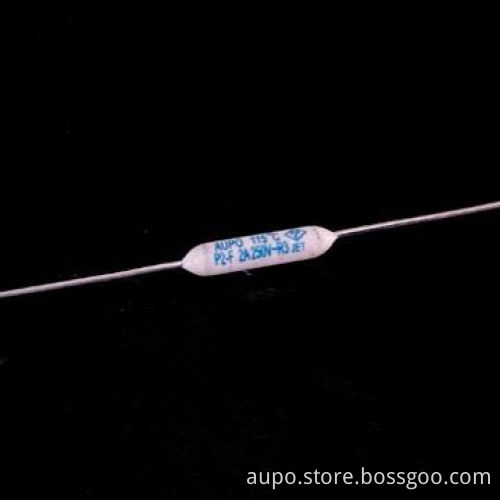

Axial Type Thermal Cut-off with Rated Voltage of 250V AC and 1A Rated Current
  • Axial Type Thermal Cut-off with Rated Voltage of 250V AC and 1A Rated Current
Axial Type Thermal Cut-off with Rated Voltage of 250V AC and 1A Rated Current

Axial Type Thermal Cut-off with Rated Voltage of 250V AC and 1A Rated Current

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Rated functioning temperature (TF):
    • P1: 102 degrees Celsius
    • P2: 115 degrees Celsius
    • P3: 125 degrees Celsius
    • P5: 135 degrees Celsius
    • P9: 138 degrees Celsius
    • P7: 150 degrees Celsius
    • P10: 117 degrees Celsius
    • P12: 145 degrees Celsius
  • Fusing-off temperature:
    • P1: 98 ± 2 degrees Celsius
    • P2: 112 ± 3 degrees Celsius
    • P3: 120 ± 3 degrees Celsius
    • P4: 126 ± 2 degrees Celsius
    • P5: 131 ± 3 degrees Celsius
    • P9: 135 ± 2 degrees Celsius
    • P7: 145 ± 3 degrees Celsius
    • P10: 113 ± 3 degrees Celsius
    • P12: 140 ± 2 degrees Celsius
  • Holding temperature (Th):
    • P1: 76 degrees Celsius
    • P2: 85 degrees Celsius
    • P3: 97 degrees Celsius
    • P4: 102 degrees Celsius
    • P5: 105 degrees Celsius
    • P9: 108 degrees Celsius
    • P7: 120 degrees Celsius
    • P10: 88 degrees Celsius
    • P12: 120 degrees Celsius
  • Maximum temperature limit (TM): 180 degrees Celsius
  • Rated current (Ir): 1A
  • Rated voltage (Ur): 250V AC
  • Safety certificates:
    • P1, P2, P3, P4, P5, P9 and P7
    • P10: UL, CSA, CUL, VED, PSE and CCC
    • P12: CSA, VDE and PSE
  • P1: 102 degrees Celsius
  • P2: 115 degrees Celsius
  • P3: 125 degrees Celsius
  • P5: 135 degrees Celsius
  • P9: 138 degrees Celsius
  • P7: 150 degrees Celsius
  • P10: 117 degrees Celsius
  • P12: 145 degrees Celsius
  • P1: 98 ± 2 degrees Celsius
  • P2: 112 ± 3 degrees Celsius
  • P3: 120 ± 3 degrees Celsius
  • P4: 126 ± 2 degrees Celsius
  • P5: 131 ± 3 degrees Celsius
  • P9: 135 ± 2 degrees Celsius
  • P7: 145 ± 3 degrees Celsius
  • P10: 113 ± 3 degrees Celsius
  • P12: 140 ± 2 degrees Celsius
  • P1: 76 degrees Celsius
  • P2: 85 degrees Celsius
  • P3: 97 degrees Celsius
  • P4: 102 degrees Celsius
  • P5: 105 degrees Celsius
  • P9: 108 degrees Celsius
  • P7: 120 degrees Celsius
  • P10: 88 degrees Celsius
  • P12: 120 degrees Celsius
  • P1, P2, P3, P4, P5, P9 and P7
  • P10: UL, CSA, CUL, VED, PSE and CCC
  • P12: CSA, VDE and PSE
