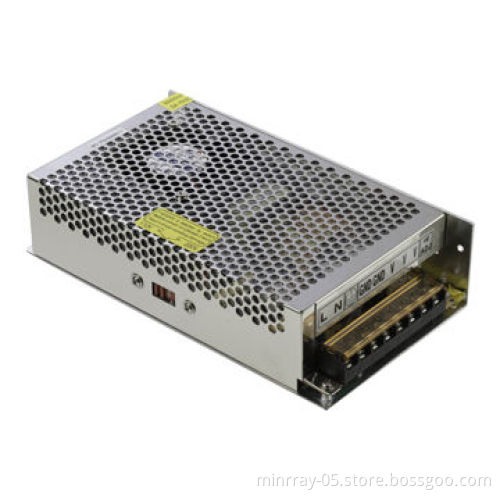

AC/DC power supply, built-in fan, output 12V, 20ANew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Power: 240W
Input:
- Universal AC voltage
- Frequency: 50/60Hz
- Line regulation range: ±0.5 (maximum)
Output: 12V/20A
Line regulation range: ±0.5% (maximum)
Ripple and noise (mVp-p): <1% of output voltage
Adjustable range of output voltage: ±3%
Start-up time: d1 second (input 240V AC and Io = 100%)
Hold-up time: e20ms (input 240V AC and Io = 100%)
Protections:
- Overloading: 115 to 150% of rated power, when it happened, the power shutdown automatically, when trouble removed the power recovers itself
- Over-voltage: 130 to 150% of rated voltage
- Over-current

Insulation intensity:

Insulation resistance:

Environment requirement:

Elevation: <3,000m

Dimensions (L x W x H): 199 x 110 x 50mm

Weight: 800g

EMC: EN55022 and GB3954

Power: 240W

Input:

Output: 12V/20A

Line regulation range: ±0.5% (maximum)

Ripple and noise (mVp-p): <1% of output voltage

Adjustable range of output voltage: ±3%

Start-up time: d1 second (input 240V AC and Io = 100%)

Hold-up time: e20ms (input 240V AC and Io = 100%)

Protections:

Overloading: 115 to 150% of rated power, when it happened, the power shutdown automatically, when trouble removed the power recovers itself
Over-voltage: 130 to 150% of rated voltage
Over-current

Universal AC voltage

Frequency: 50/60Hz

Line regulation range: ±0.5 (maximum)

Overloading: 115 to 150% of rated power, when it happened, the power shutdown automatically, when trouble removed the power recovers itself

Over-voltage: 130 to 150% of rated voltage

Over-current

Input/output: 1,500V/5mA, 60 seconds

Input/ground: 1,500V/5mA, 60 seconds

Output/ground: 500V/5mA, 60 seconds

Operating temperatures: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperatures: -20 to 85°C
