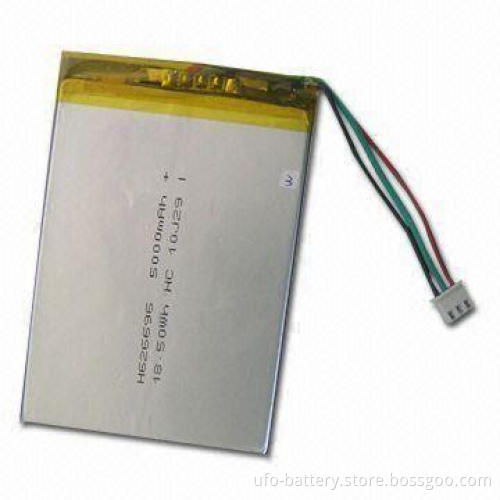

Rechargeable Lithium Polymer Battery with 3.7V Nominal Voltage and 5,000mAh Typical Capacity

Get Latest Price

Payment Type:: 30% T/T in Advance, Balance before Shipment or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% T/T in Advance, Balance before Shipment or L/C

Product Description

Features:

High capacity density
High safety, no burning, no explosion
Can use any object shape
Clean green energy and environment-friendly

Specifications:

Typical capacity: 5000mAh
Nominal voltage: 3.7V
End voltage: 2.75V
Charging current (Std.): 0.2CA (=1A)
Charging current (maximum): 1.0CA (=5A)
Charging voltage: 4.20 ± 0.025V
Charging time (Std.): 6 to 7.0 hours
Charging time (maximum): 2.0 to 3.0 hours
Continuous discharging current (maximum): 5A
Discharging current (maximum): 10A
Soft pack internal resistance (25°C): 112mΩ
Packaging dimensions: maximum 6.0 x 56 x 126.5mm
Weight: 91g

Applications:

Telecommunications: cellular phone, interphone and Bluetooth earphone
Video devices: MP3/MP4/MP5, digital camera, portable DVD and portable television
Portable devices: GPS, PDA, E-book, PMP, PSP, portable medical device and more
Illuminate devices: miner lamp and searchlight
Others: toys, RC models
