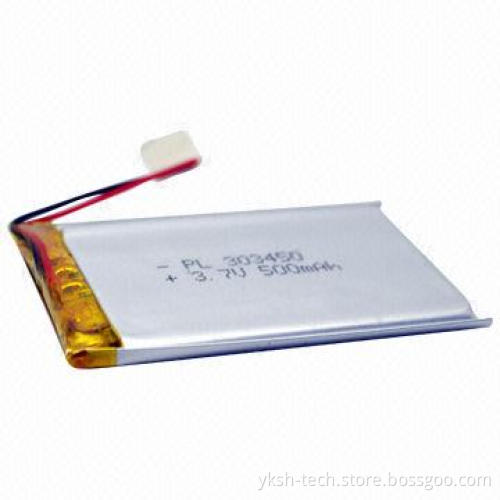

Soft Pack Lithium Polymer Battery, ICS493427 with 3.7V, 500mAh For GPS/MP4 Players/Portable Devices

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Charging voltage: 4.2V
Over-charge protection voltage: 4.3V
Nominal voltage: 3.7V
Minimal capacity (0.5C): 500mAh at 0.5C discharge
Nominal capacity: 500mAh at 0.5C discharge
Charge current:
- Standard charge at 0.5C
- Rapid charge at 1.0C
Standard charging method: 0.5C, CC (constant current) charge to4.2V, then CV (constant voltage 4.2V) charge till charge currentdecline to d0.05C
Charging time: standard charge needs 3.0 hours (ref) and rapidcharge needs 2 hours (ref)
Maximum charge current: 1C
Maximum discharge current: 2C
Discharge cut-off voltage: 3.0V
Operating temperature:
- Charging: 0 to 45
- Discharging: -10 to 45
- Storage temperature: -10 to + 45
Cell weight: 11.4g (approximately)
Cell dimensions:
- Length: 50mm
- Width: 34mm
- Thickness: 3.0mm
The size of lithium polymer is very flexible, so we can producethe battery size as your requests
