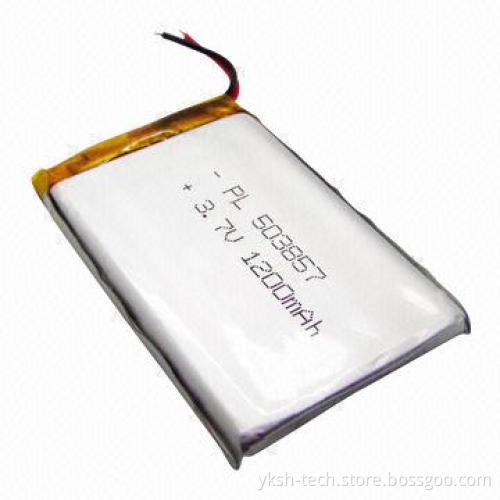

Soft Pack Lithium Polymer Battery, ICS503857, 3.7V, 1,200mAh for GPS/MP4/Small Portable Devices

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Charging voltage: 4.2V
Over-charge protection voltage: 4.3V
Nominal voltage: 3.7V
Minimum capacity (0.5C): 1,200mAh at 0.5C discharge
Nominal capacity: 1,200mAh at 0.5C discharge
Charge current: standard charge at 0.5C and rapid charge at1.0C
Standard charging method: 0.5C (constant current) charge to4.2V, then CV (constant voltage 4.2V) charge till charge currentdecline to d0.05C
Charging time: standard charge needs 3.0 hours and rapid chargeneeds 2 hours
Charging current: 1C (maximum)
Discharge current: 2C (maximum)
Discharge cut-off voltage: 3.0V
Operating temperature:
- Charging: 0 to 45
- Discharging: -10 to 45
Storage temperature: -10 to +45
Cell weight: 4.5g
Cell dimensions:
- Length: 57mm
- Width: 38mm
- Thickness: 5.0mm
The size of lithium polymer is very flexible, so we can producethe battery size as per your requests
