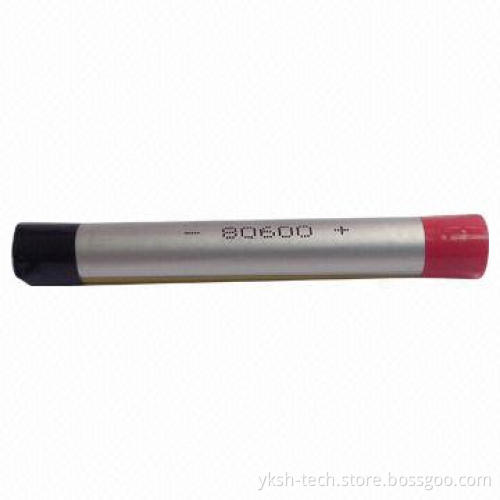

Soft Pack Lithium Polymer Battery for Electrical Cigarettes, ICS80600 with 3.7V, 270mAh
  • Soft Pack Lithium Polymer Battery for Electrical Cigarettes, ICS80600 with 3.7V, 270mAh
Soft Pack Lithium Polymer Battery for Electrical Cigarettes, ICS80600 with 3.7V, 270mAh

Soft Pack Lithium Polymer Battery for Electrical Cigarettes, ICS80600 with 3.7V, 270mAh

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Charging voltage: 4.2V
    • Overcharge protection voltage: 4.3V
    • Nominal voltage: 3.7V
    • Minimal capacity (0.5C): 260mAh at 0.5C discharge
    • Nominal capacity: 270mAh at 0.5C discharge
    • Charge current:
      • Standard charge: 0.5C
      • Rapid charge: 1.0C
    • Standard charging method: 0.5C, CC (constant current) charge to4.2V, then CV (constant voltage 4.2V) charge till charge currentdecline to d0.05C
    • Charging time: standard charge needs 3.0 hours (ref) and rapidcharge needs 2 hours (ref)
    • Maximum charge current: 1C
    • Maximum discharge current: 6C
    • Discharge cut-off voltage: 3.0V
    • Operating temperature:
      • Charging: 0 to 45
      • Discharging: -10 to 45
      • Storage temperature: -10 to +45
    • Cell weight: 5.3g (approximately)
    • Cell dimensions:
      • Diameter: 8.5mm
      • Length: 60.5mm
    • This kind of battery is specialized for electricalcigarettes
  • Charging voltage: 4.2V
  • Overcharge protection voltage: 4.3V
  • Nominal voltage: 3.7V
  • Minimal capacity (0.5C): 260mAh at 0.5C discharge
  • Nominal capacity: 270mAh at 0.5C discharge
  • Charge current:
    • Standard charge: 0.5C
    • Rapid charge: 1.0C
  • Standard charging method: 0.5C, CC (constant current) charge to4.2V, then CV (constant voltage 4.2V) charge till charge currentdecline to d0.05C
  • Charging time: standard charge needs 3.0 hours (ref) and rapidcharge needs 2 hours (ref)
  • Maximum charge current: 1C
  • Maximum discharge current: 6C
  • Discharge cut-off voltage: 3.0V
  • Operating temperature:
    • Charging: 0 to 45
    • Discharging: -10 to 45
    • Storage temperature: -10 to +45
  • Cell weight: 5.3g (approximately)
  • Cell dimensions:
    • Diameter: 8.5mm
    • Length: 60.5mm
  • This kind of battery is specialized for electricalcigarettes
  • Standard charge: 0.5C
  • Rapid charge: 1.0C
  • Charging: 0 to 45
  • Discharging: -10 to 45
  • Storage temperature: -10 to +45
  • Diameter: 8.5mm
  • Length: 60.5mm
