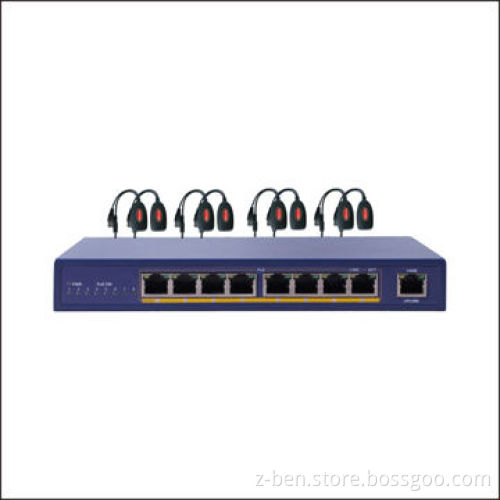

Power Video Balun with 8CH Power Video
  • Power Video Balun with 8CH Power Video
  • Power Video Balun with 8CH Power Video
  • Power Video Balun with 8CH Power Video
Power Video Balun with 8CH Power Video
Power Video Balun with 8CH Power Video
Power Video Balun with 8CH Power Video

Power Video Balun with 8CH Power Video

Get Latest Price
Payment Type:
T/T, L/C at Sight, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C at Sight, Western Union
Product Description
Product Description
  • Channel: 8CH
  • POE standard: IEEE802.3af/IEEE802.3 at
  • POE specification:
    • Port: 15.4W/25.5WIEEE 802.3 af/at
    • Power budget: 96W
    • POE type: end -span 1/2 (+), 3/6(-), mid -span 4/5 (+),7/8(-)
  • Network port:
    • POE ports: 1/4/8
    • Connector: RJ4S
    • Network: 10/100M auto-sensing
    • Cables: UTP Cat5e cable or above
    • POE distance: 100m
    • Standard: IEEE 802.3 i 10 Base-T IEEE 802.3 u 100Base-TX, IEEE802.3 x flow control
    • IEEE 802.3 af/at power over Ethernet
    • Performance: store and forward
    • Packet forwarding rate: 0.6 Mpps (5ã/1.2 Mpps(9ã
    • Backplane bandwidth rate: 0.8G (5 ports)/1.6G (9 ports)
    • Type: 10/100Mbps auto-negotiation and auto MDI-MDI -X
    • Buffer memory: 96Kb
    • Address database table size: 3000MAC Address
    • Network latency: less than 20us for 64 byte frames in store-and-forward mode
    • Protection: IEC 61000-4-2ESD ±15kV (air), ±8kV (contact) 8/20µs 24A/12A
  • Safety: CE/LVD, CE Class B, FCC Part15, Class B, C-Tick
  • Operating temperature working temperature: -10-55°C
  • Storage temperature: -20~70°C, 10-90%
  • Working humidity: non condensing less than 5W
  • Power: DC 48V/1.25A
  • Dimensions: 117*105*28mm
  • Weight: 1.22kg
  • Supports PoE power up to 15.4W for each PoE ports
  • Auto detect powered device (PD)
  • Safe and reliable power to most of PoE end device
  • Plug-and-play, no configuration required
  • Easy network construction by PoE function
  • Easy installation with no configuration required
  • Port: 15.4W/25.5WIEEE 802.3 af/at
  • Power budget: 96W
  • POE type: end -span 1/2 (+), 3/6(-), mid -span 4/5 (+),7/8(-)
  • POE ports: 1/4/8
  • Connector: RJ4S
  • Network: 10/100M auto-sensing
  • Cables: UTP Cat5e cable or above
  • POE distance: 100m
  • Standard: IEEE 802.3 i 10 Base-T IEEE 802.3 u 100Base-TX, IEEE802.3 x flow control
  • IEEE 802.3 af/at power over Ethernet
  • Performance: store and forward
  • Packet forwarding rate: 0.6 Mpps (5ã/1.2 Mpps(9ã
  • Backplane bandwidth rate: 0.8G (5 ports)/1.6G (9 ports)
  • Type: 10/100Mbps auto-negotiation and auto MDI-MDI -X
  • Buffer memory: 96Kb
  • Address database table size: 3000MAC Address
  • Network latency: less than 20us for 64 byte frames in store-and-forward mode
  • Protection: IEC 61000-4-2ESD ±15kV (air), ±8kV (contact) 8/20µs 24A/12A
