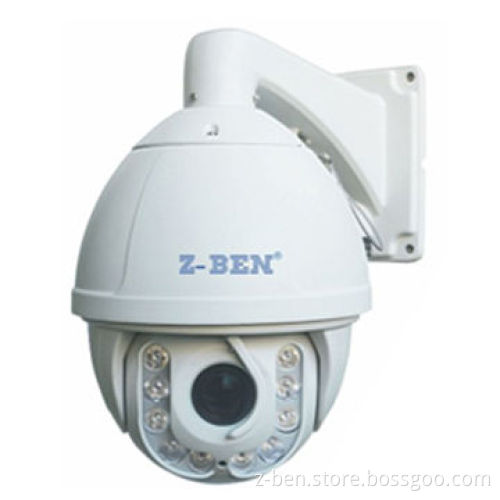

HD SDI Speed Dome Cameras with IR Distance of 150m

HD SDI Speed Dome Cameras with IR Distance of 150m

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

HD SDI speed dome cameras

Image sensors: 1/3-inch progressive scan CMOS or 1/2.7-inch progressive scan CMOS

Effective pixels: 1,320 pixels

Total pixels: 2.0 megapixels or 1.3/2.0 megapixels

Output pixels: 1920*1080 at 30fps, 1920*1080 at 25fps, 1,280*720 at 60fps, 1,280*720 at 50fps

Lens: 20x optional zoom f=4.45mm (W)-89mm (T)+5% or 10x optional zoom f=4.9mm (W)-49mm (T)+5%

Iris: F=1.6-F=2.9 or F=1.6-F=2.8

Viewing angle:

D: wide 68.5°+5% TELE 4.2°+5%
H: wide 54.8°+5% TELE3.4°+5%
V: wide 41°+5% TELE 2.5°+5%
H: (W) 51.8°-5.86°(T)
V: (W) 39.1°-4.4°(T)

Minimum illumination: color 0.01 lux, B/W 0 lux

D/N: IR-cut

WB: auto

S/N ratio: ≥44dB or ≥50dB

BLC: 360° continuous rotation

Tilt range: 0°-93° auto, flip 180°

Manual pan speed: 0.02°-300°/s or 0.02°-220°/s

Manual tilt speed: 0.02°-160°/s or 0.02°-100°/s

Preset points: 220

Pattern scan: 4 groups

Guard tours: 4 groups

Guard points: maximum 16 points, dwell time user optional

Operating temperature:

Indoor: 0°-+40°
Outdoor: -40°-+60°

Operating menu: multiple languages for OSD menu, English, Spanish

Pan and tilt position display: supported

Humidity: <95% non condensing

Power: AC 24V <3A or DC 12V/AC 24V <3A

Power consumption: <25W

Lighting protection: transient voltage 6,000V

Video interface output: SDI CVBS

Communication output: RS485 (+/-)

Connection: coaxial cable

Size/weight: 3.7kg (NW), 7.2kg (NW) or 27kg (NW), 3.4kg (NW)

Related validation: IP66, CE, FCC, RoHS

Auto control IR LED: PWM

Supported ambient light detection: IR illumination on 1-15 grades selectable

LED: 10pcs, 42mil or 4pcs

IR distance: up to 150 meters or up to 50 meters

D: wide 68.5°+5% TELE 4.2°+5%

H: wide 54.8°+5% TELE3.4°+5%

V: wide 41°+5% TELE 2.5°+5%

H: (W) 51.8°-5.86°(T)

V: (W) 39.1°-4.4°(T)

Indoor: 0°-+40°

Outdoor: -40°-+60°
