CCTV Security Testerm, PRO 170 x 99 x 48mm/293g

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight

Product Description

Specifications:

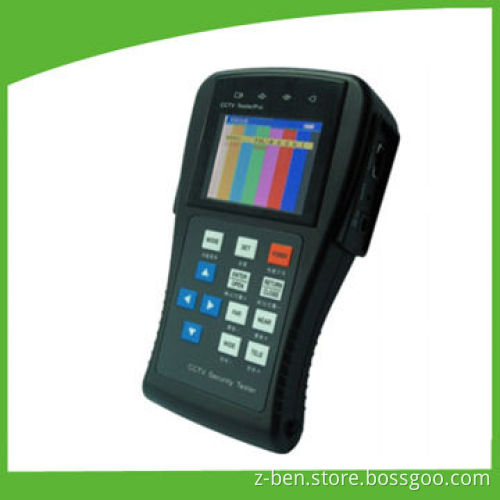

CCTV Security TesterPRO

Signal system: PAL/NTSC (auto adapt)

Display: 2.8-inch digital TFT-LCD with 960 x 240 pixelsresolution

LCD adjustment: brightness, contrast, saturationadjustable

Video-in/out: 1 x channel BNC input and 1 x channel BNCoutput

Video output mode: communication with more than 20 protocolssuch as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan and more

Baud rate: 150, 300, 600, 1,200, 2,400, 4,800, 9,600 and19,200bps

Color bar generation: output channel color bar video signal fortesting monitor or video cable

UTP cable test: 12V DC/1A power for camera

DC12V power output: Test UTP cable connection status anddisplay in the screen

Read the number of the test box

Power adapter: 5V DC/2A

Battery: built-in 3.7V lithium polymer battery, 2,800mAh

Rechargeable: after charging 3 to 4 hour, working time last 15hours

Working temperature: -30 to +70°C

Working humidity: 30 to 90% RH

Dimensions: 170 x 99 x 48mm

Weight: 293g
