DisplayPort 1.2a Splitter

Get Latest Price

Payment Type:: D/P or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	D/P or T/T

Product Description

Description DisplayPort 1.2a splitter input interface:

Single DP++ interface featuring
DisplayPort Ver1.2a compliant receiver, supports MyDP, video resolution up to 4K*2K@60 Hz

Output interface:

Two DP++ interfaces featuring
AC coupled DisplayPort Ver. 1.2a compliant transmitter
Support mirroring and extention modes

Supported video timings:

4K*2K 60 Hz: 24 bits/pixel in DP 1.2a configuration
1920 x 1080 (FHD) 240 Hz, 24 bits/pixel
All 3D formats defined in DP 1.2a and HDMI 1.4 standards
All standard CEA861 timing formats

Supported audio timings:

All audio formats as specified in DP 1.2a and HDMI 1.4 standards
SPDIF, 2-Ch LPCM, AC3, DTS, bit depth up to 24 bits, sample rate up to 192 kHz.
HDCP 1.3 support: Key sets for DP/HDMI RX and DP/HDMI TX integrated in one-time programmable ROM (OTP). Standalone HDCP repeater capability
Power supply voltages: 3.3 V I/O, 1.2 V core
It is a VESA DP Standard Ver. 1.2a compliant device that supports advanced features such as MST, HBR2, 3D formats and GTC assist. Designs based on STDP4320 have the flexibility to offer either DP or HDMI/DVI connectors on its end product to interface with legacy and new generation video sources and sinks. In addition, STDP4320-based products with a DisplayPort output connector are DP++ compliant and work with any HDMI or single link DVI sink through a passive level translator (dongle)

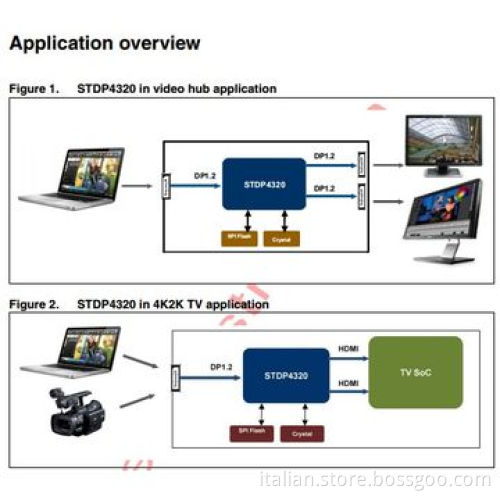

Applications: Audio-video router for PC/notebooks, docking stations, hub, 4K*2K TVs, daisy chain monitors, digital signage

Single DP++ interface featuring

DisplayPort Ver1.2a compliant receiver, supports MyDP, video resolution up to 4K*2K@60 Hz

Two DP++ interfaces featuring

AC coupled DisplayPort Ver. 1.2a compliant transmitter

Support mirroring and extention modes

4K*2K 60 Hz: 24 bits/pixel in DP 1.2a configuration

1920 x 1080 (FHD) 240 Hz, 24 bits/pixel

All 3D formats defined in DP 1.2a and HDMI 1.4 standards

All standard CEA861 timing formats

All audio formats as specified in DP 1.2a and HDMI 1.4 standards

SPDIF, 2-Ch LPCM, AC3, DTS, bit depth up to 24 bits, sample rate up to 192 kHz.

HDCP 1.3 support: Key sets for DP/HDMI RX and DP/HDMI TX integrated in one-time programmable ROM (OTP). Standalone HDCP repeater capability

Power supply voltages: 3.3 V I/O, 1.2 V core

It is a VESA DP Standard Ver. 1.2a compliant device that supports advanced features such as MST, HBR2, 3D formats and GTC assist. Designs based on STDP4320 have the flexibility to offer either DP or HDMI/DVI connectors on its end product to interface with legacy and new generation video sources and sinks. In addition, STDP4320-based products with a DisplayPort output connector are DP++ compliant and work with any HDMI or single link DVI sink through a passive level translator (dongle)

Applications: Audio-video router for PC/notebooks, docking stations, hub, 4K*2K TVs, daisy chain monitors, digital signage
