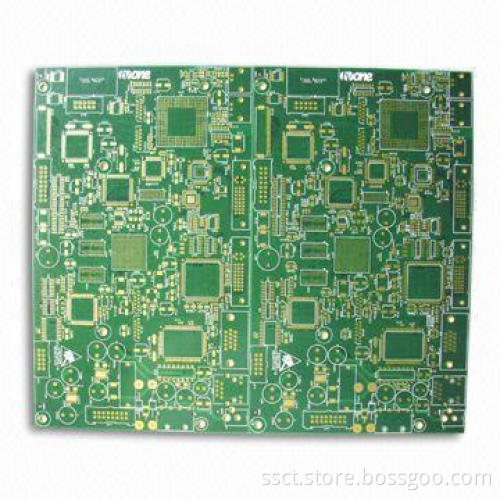

Impedance Board with 0.3mm Minimum via Diameter and 8 Layers

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Layer count: 8

Finish thickness: 1.55±10%mm

Minimum width/spacing:

Minimum via diameter: 0.3mm

Surface finish: ENIG

Specialty:

Outer annular ring: 2mil

Outer line: 3.7/3.2mil

Inner line: 3.5/6mil

L1, L2, L7

L8: characteristic impedance with 75Ω ± 10%

L1: differential impedance with 110Ω ± 10%
