Product Description

Description:

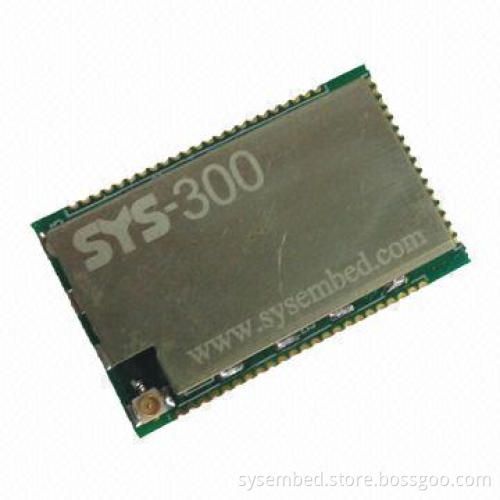

SYS-300 ZigBee module is the SYSTECH based on the latest high-performance radio frequency micro-controller and design, compact module, conforms to IEEE 802.15.4 specification, which can be applied to wireless sensor, control and data acquisition
UART communication based on general AT instruction form, simple to use, just a few steps to configure simple fast realizing transparent transmission of serial data, easy to replace the original cable connection, for the user to develop save a lot of time and energy, thus to save time to market

Features:

Carrier frequency: 2.4GHz
Receiving signal range: -97dBm (typical)
Antenna power: 4dBm
Data rate: 9,600~230,400bps
Power: 2V-3.6V
Typical values: 3.3V
Total power of module:
- A: average power consumption when not working: 12-13.5mW
- B: average power consumption when working: 97-121mW
- C. peak power operation: 105-138mW
Power consumption: 45mA (maximum)
Standby current: ≤50uA

Specification:

Supports ZigBee2007/PRO
Operating temperature: -20~75℃
Weight: 3g
Size: 38.6*23.2*3mm (W x L x H)
Communication distance: 200-250m (external 5dB whip antenna), 300-400m (external 9dB whip antenna)
