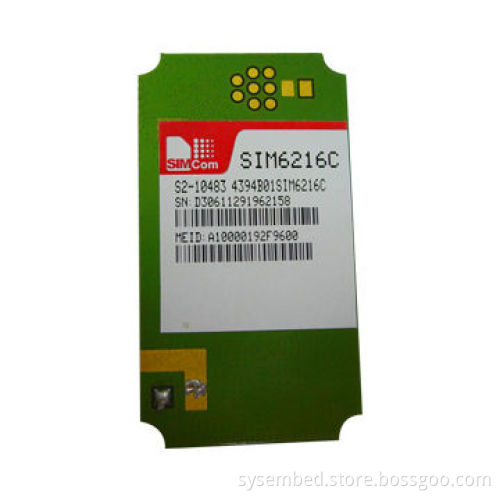

CDMA-EVDO Module, Pin-to-pin, Compatible with WCDMA Module Series
  • CDMA-EVDO Module, Pin-to-pin, Compatible with WCDMA Module Series
  • CDMA-EVDO Module, Pin-to-pin, Compatible with WCDMA Module Series
CDMA-EVDO Module, Pin-to-pin, Compatible with WCDMA Module Series
CDMA-EVDO Module, Pin-to-pin, Compatible with WCDMA Module Series

CDMA-EVDO Module, Pin-to-pin, Compatible with WCDMA Module Series

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • Single-band cell: 800MHz
    • CDMA-EVDO: Rev.A
    • CDMA: 1X
    • Output power cell 800: 0.25W
    • Control via AT commands
    • Supply voltage range: 3.3-4.2V
    • Extended operating temperatures: -30 to 80°C
    • Dimensions: 47 x 26 x 3mm
    • Weight: 6.2g
    • Supports embedded script language: LUA
    • Data transfer:
      • EVDO: 3.1Mbps (DL), 1.8Mbps (UL) (maximum)
    • SMS:
      • Point-to-point MO and MT
      • Supports ASCII and Unicode
    • Features:
      • USB driver for Microsoft's Windows2000/XP/Vista/7/CE/mobile/Linux 2.6/Google's Android
      • Firmware update via USB
      • MMS, TCP/IP, FTP/HTTP/HTTPS/SMTP/POP3
    • Interfaces:
      • USB2.0, UART, UIM card, SPI, I2C and keypad
      • Constant current sink, GPIO, RTC, ADC and PCM
  • Single-band cell: 800MHz
  • CDMA-EVDO: Rev.A
  • CDMA: 1X
  • Output power cell 800: 0.25W
  • Control via AT commands
  • Supply voltage range: 3.3-4.2V
  • Extended operating temperatures: -30 to 80°C
  • Dimensions: 47 x 26 x 3mm
  • Weight: 6.2g
  • Supports embedded script language: LUA
  • Data transfer:
    • EVDO: 3.1Mbps (DL), 1.8Mbps (UL) (maximum)
  • SMS:
    • Point-to-point MO and MT
    • Supports ASCII and Unicode
  • Features:
    • USB driver for Microsoft's Windows2000/XP/Vista/7/CE/mobile/Linux 2.6/Google's Android
    • Firmware update via USB
    • MMS, TCP/IP, FTP/HTTP/HTTPS/SMTP/POP3
  • Interfaces:
    • USB2.0, UART, UIM card, SPI, I2C and keypad
    • Constant current sink, GPIO, RTC, ADC and PCM
  • EVDO: 3.1Mbps (DL), 1.8Mbps (UL) (maximum)
  • Point-to-point MO and MT
  • Supports ASCII and Unicode
  • USB driver for Microsoft's Windows2000/XP/Vista/7/CE/mobile/Linux 2.6/Google's Android
  • Firmware update via USB
  • MMS, TCP/IP, FTP/HTTP/HTTPS/SMTP/POP3
  • USB2.0, UART, UIM card, SPI, I2C and keypad
  • Constant current sink, GPIO, RTC, ADC and PCM
