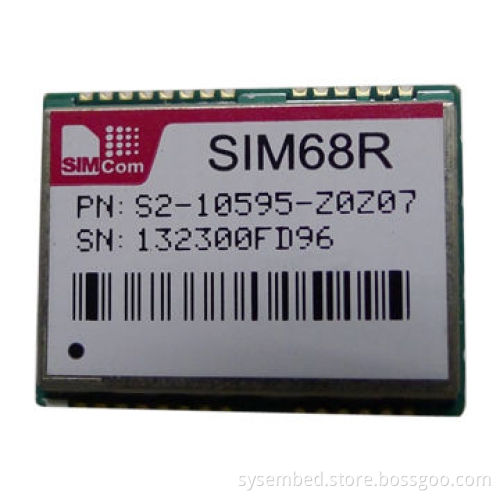

GPS wireless module
  • GPS wireless module
  • GPS wireless module
  • GPS wireless module
GPS wireless module
GPS wireless module
GPS wireless module

GPS wireless module

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • General features:
    • Quad-band: 850/900/1,800/1,900MHz
    • GPRS multiple-slots: class 10/8
    • GPRS mobile station: class B
    • Compliant to GSM phases: 2/2+
    • Class 4: 2W at 850/900MHz
    • Class 1: 1W at 1,800/1,900MHz
    • SAIC (single antenna interference cancellation) support
    • Dimensions: 24 x 24 x 3mm
    • Weight: 3.4g
    • Control via AT commands: GSM 07.07, 07.05 and SIMCOMenhanced
    • SIM application toolkit
    • Supply voltage range: 3.2-4.8V
    • Low-power consumption: 1.0mA (sleep mode and BS-PAMFRMS =9)
    • Operating temperatures: -40 to 85°C
  • Specifications:
    • Fax:
      • Group 3, class 1
      • GPRS data: class 10 maximum 85.6kbps (downlink)
      • PBCCH support
      • Coding schemes (CS): 1, 2, 3, 4
      • PPP-stack
    • CSD data:
      • USSD
      • Non-transparent mode
      • Specifications for SMS via GSM/GPRS
      • Point to point MO and MT
      • SMS cell broadcast
      • Text and PDU mode
    • Software: 0710 MUX protocol, embedded TCP/UDP protocol, FTP/HTTP, special firmware, embedded AT, Java (cooperate withisolation), FOTA, MMS
    • Voice:
      • Tricodec
      • Half rate (HR)
      • Full rate (FR)
      • Enhanced full rate (EFR)
      • AMR
      • Half rate (HR)
      • Full rate (FR)
    • Handsfree operation (Echo suppression)
    • Interfaces
    • Interface to external SIM 3/1.8V
    • Analog audio interface
    • RTC backup
    • SPI interface (optional)
    • Serial interface
    • Antenna pad
  • Quad-band: 850/900/1,800/1,900MHz
  • GPRS multiple-slots: class 10/8
  • GPRS mobile station: class B
  • Compliant to GSM phases: 2/2+
  • Class 4: 2W at 850/900MHz
  • Class 1: 1W at 1,800/1,900MHz
  • SAIC (single antenna interference cancellation) support
  • Dimensions: 24 x 24 x 3mm
  • Weight: 3.4g
  • Control via AT commands: GSM 07.07, 07.05 and SIMCOMenhanced
  • SIM application toolkit
  • Supply voltage range: 3.2-4.8V
  • Low-power consumption: 1.0mA (sleep mode and BS-PAMFRMS =9)
  • Operating temperatures: -40 to 85°C
  • Fax:
    • Group 3, class 1
    • GPRS data: class 10 maximum 85.6kbps (downlink)
    • PBCCH support
    • Coding schemes (CS): 1, 2, 3, 4
    • PPP-stack
  • CSD data:
    • USSD
    • Non-transparent mode
    • Specifications for SMS via GSM/GPRS
    • Point to point MO and MT
    • SMS cell broadcast
    • Text and PDU mode
  • Software: 0710 MUX protocol, embedded TCP/UDP protocol, FTP/HTTP, special firmware, embedded AT, Java (cooperate withisolation), FOTA, MMS
  • Voice:
    • Tricodec
    • Half rate (HR)
    • Full rate (FR)
    • Enhanced full rate (EFR)
    • AMR
    • Half rate (HR)
    • Full rate (FR)
  • Handsfree operation (Echo suppression)
  • Interfaces
  • Interface to external SIM 3/1.8V
  • Analog audio interface
  • RTC backup
  • SPI interface (optional)
  • Serial interface
  • Antenna pad
  • Group 3, class 1
  • GPRS data: class 10 maximum 85.6kbps (downlink)
  • PBCCH support
  • Coding schemes (CS): 1, 2, 3, 4
  • PPP-stack
  • USSD
  • Non-transparent mode
  • Specifications for SMS via GSM/GPRS
  • Point to point MO and MT
  • SMS cell broadcast
  • Text and PDU mode
  • Tricodec
  • Half rate (HR)
  • Full rate (FR)
  • Enhanced full rate (EFR)
  • AMR
  • Half rate (HR)
  • Full rate (FR)
