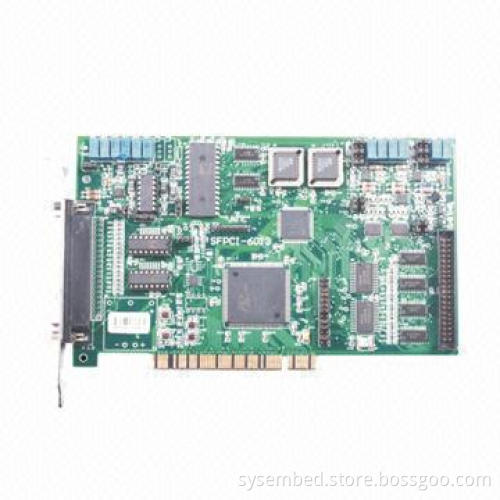

PCI acquisition cards

Get Latest Price

Payment Type:: Letter of Credit (LC, L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Descriptions:

It is a collection of an economic type multifunctional data card, 16 end channel or 8 channel differential analog input, the AD channel 12 bit 100KHz sampling rate, the 100KHz acquisition rate, acquisition of absolute and relative precision can reach ± 2LSB
Applicable to noise, interference of industrial control applications

Features:

AD channels16 single-ended, double-end 8-way
AD signal range: 0V ~ 10V;-5V ~ +5 V;-10V ~ +10 V
Programmable amplifier ratio: 1, 2, 4, 8/1, 10, 100, 1,000
Input impedance: ≥10MΩ
AD converter resolution: 12
AD conversion speed: 10us
Amplifier settling time: 7uS (0.01%)
AD conversion system pass rate: 100 KHz
AD conversion linearity error: ± 2LSB
DA channels: 2 channels
DA range: 0 ~ 2.5V, 0 ~ 5V, 0 ~ 10V, -2.5V ~ +2.5 V, -5V ~ +5 V and -10V ~ 10V
DA converter resolution 12
DA converter integrated error voltage mode: ≤ 0.1% FS
DI: 16 road
DO: 16 road
Input output level: TTL/CMOS level compatible

It is a collection of an economic type multifunctional data card, 16 end channel or 8 channel differential analog input, the AD channel 12 bit 100KHz sampling rate, the 100KHz acquisition rate, acquisition of absolute and relative precision can reach ± 2LSB

Applicable to noise, interference of industrial control applications

AD channels16 single-ended, double-end 8-way

AD signal range: 0V ~ 10V;-5V ~ +5 V;-10V ~ +10 V

Programmable amplifier ratio: 1, 2, 4, 8/1, 10, 100, 1,000

Input impedance: ≥10MΩ

AD converter resolution: 12

AD conversion speed: 10us

Amplifier settling time: 7uS (0.01%)

AD conversion system pass rate: 100 KHz

AD conversion linearity error: ± 2LSB

DA channels: 2 channels

DA range: 0 ~ 2.5V, 0 ~ 5V, 0 ~ 10V, -2.5V ~ +2.5 V, -5V ~ +5 V and -10V ~ 10V
