Product Description

Description:

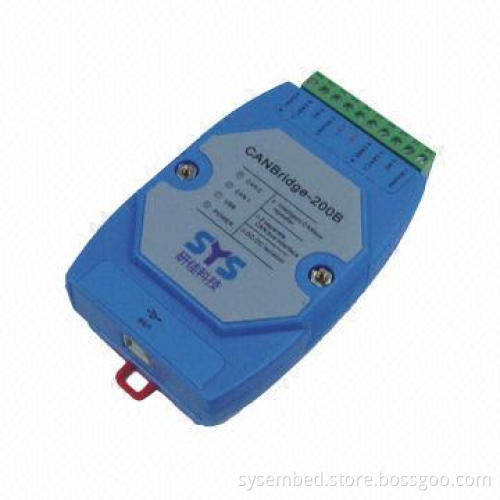

CANBridge-200 B is an intelligent repeater, development of the Systech
Supports ultra-low rates, is very suitable for mining, energy transportation engineering, environmental monitoring and other needs of long-distance transmission applications

Features:

CAN2.0A, CAN2.0B, ISO/DIS 11898
Configuration power supply, USB
CAN baud rate: 2.5Kbps-1Mbps optional
Power: 150mA @ 12V, the typical value
CAN speed: the highest conversion rate higher than 5,000fps
CAN interface definition: CANH, CANL, shield (shield)
Terminal resistance: 120 ohms, optional disconnect
Installation: Din rail mounted, or screw mounting
Isolation: 2,500V
Power supply: 9-30V DC input, 1,500V AC pressure
Operating temperatures: -25-75 ℃
Storage temperatures: -40-85 ℃
Size: 110 x 60 x 25mm

CANBridge-200 B is an intelligent repeater, development of the Systech

Supports ultra-low rates, is very suitable for mining, energy transportation engineering, environmental monitoring and other needs of long-distance transmission applications

CAN2.0A, CAN2.0B, ISO/DIS 11898

Configuration power supply, USB

CAN baud rate: 2.5Kbps-1Mbps optional

Power: 150mA @ 12V, the typical value

CAN speed: the highest conversion rate higher than 5,000fps

CAN interface definition: CANH, CANL, shield (shield)

Terminal resistance: 120 ohms, optional disconnect

Installation: Din rail mounted, or screw mounting

Isolation: 2,500V

Power supply: 9-30V DC input, 1,500V AC pressure

Operating temperatures: -25-75 ℃

Storage temperatures: -40-85 ℃
