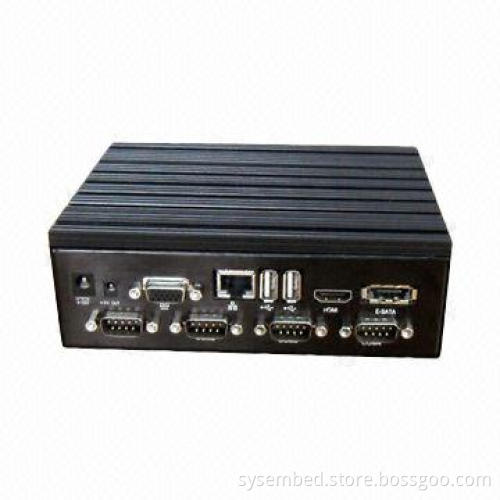

Fanless Embedded Box PC, Based on N2600 IBP-501H, Measures 140 x 100 x 22mm
  • Fanless Embedded Box PC, Based on N2600 IBP-501H, Measures 140 x 100 x 22mm
Fanless Embedded Box PC, Based on N2600 IBP-501H, Measures 140 x 100 x 22mm

Fanless Embedded Box PC, Based on N2600 IBP-501H, Measures 140 x 100 x 22mm

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • CPU:
      • Intel N2600 or N2800 CPU
      • CPU frequency 1.6/1.83GHz, dual-core, hyper threading
      • Power 10W, SMD BGA package
    • Chipset:
      • Intel NM10
      • Memory
      • SO-DIMM, DDR3-800/1066, compatible with DDR3-1333
      • Maximum: 4GB
    • Bios:
      • SPI AMI EFI bios
      • Compatible with ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
    • Video chip:
      • Intel GMA3650, 400MHz
    • Interfaces:
      • 1 x VGA contact pin
      • 1 x HDMI® port
      • 1 x dual-channel 24 bits LVDS socket
    • Internet:
      • Speed 10/100/1000Mbps self adaption
      • Interface 2 RJ45
    • Audio interface: 1 line-out, 1 mic
    • 12W/8Ω power amplifier contact pin (left, right)
    • USB speed: USB2.0 480Mb/second
    • USB interface and contact pin: 4 USB port, 2 preposition standard USB contact pin
    • Storage: SATA 1 standard SATA II interface, MSATA, SSD interface with 1 mini-PCIE interface
    • IO: contact pin and interface, 6 COM contact pin
    • PCI: 1 standard mini-PCIE interface with SIM card slot, compatible with 3G
    • GPIO: 1 reserve programmable input/output contact pin
    • Others: 1 DC-jack, 1 ATX 2 x 2 4-pin interface, 12V DC
    • Dimensions: 140 x 100 x 22mm
    • Operating systems: Microsoft's Windows, 7/XP and Unix/Linux
    • Working environment:
      • Temperature range: -20-60℃
      • Humidity range: 0-85% RH
  • CPU:
    • Intel N2600 or N2800 CPU
    • CPU frequency 1.6/1.83GHz, dual-core, hyper threading
    • Power 10W, SMD BGA package
  • Chipset:
    • Intel NM10
    • Memory
    • SO-DIMM, DDR3-800/1066, compatible with DDR3-1333
    • Maximum: 4GB
  • Bios:
    • SPI AMI EFI bios
    • Compatible with ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
  • Video chip:
    • Intel GMA3650, 400MHz
  • Interfaces:
    • 1 x VGA contact pin
    • 1 x HDMI® port
    • 1 x dual-channel 24 bits LVDS socket
  • Internet:
    • Speed 10/100/1000Mbps self adaption
    • Interface 2 RJ45
  • Audio interface: 1 line-out, 1 mic
  • 12W/8Ω power amplifier contact pin (left, right)
  • USB speed: USB2.0 480Mb/second
  • USB interface and contact pin: 4 USB port, 2 preposition standard USB contact pin
  • Storage: SATA 1 standard SATA II interface, MSATA, SSD interface with 1 mini-PCIE interface
  • IO: contact pin and interface, 6 COM contact pin
  • PCI: 1 standard mini-PCIE interface with SIM card slot, compatible with 3G
  • GPIO: 1 reserve programmable input/output contact pin
  • Others: 1 DC-jack, 1 ATX 2 x 2 4-pin interface, 12V DC
  • Dimensions: 140 x 100 x 22mm
  • Operating systems: Microsoft's Windows, 7/XP and Unix/Linux
  • Working environment:
    • Temperature range: -20-60℃
    • Humidity range: 0-85% RH
  • Intel N2600 or N2800 CPU
  • CPU frequency 1.6/1.83GHz, dual-core, hyper threading
  • Power 10W, SMD BGA package
  • Intel NM10
  • Memory
  • SO-DIMM, DDR3-800/1066, compatible with DDR3-1333
  • Maximum: 4GB
  • SPI AMI EFI bios
  • Compatible with ACPI2.0B, APM1.2, DIM2.0, SMBIOS2.5
  • Intel GMA3650, 400MHz
  • 1 x VGA contact pin
  • 1 x HDMI® port
  • 1 x dual-channel 24 bits LVDS socket
  • Speed 10/100/1000Mbps self adaption
  • Interface 2 RJ45
  • Temperature range: -20-60℃
  • Humidity range: 0-85% RH
