Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Descriptions:

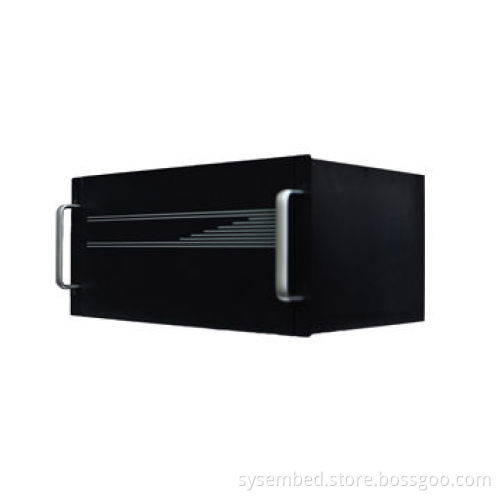

The MSP2000 range of video wall controllers brings increased performance based on PC & FPGA integration architecture ,in which PC to provide users with a friendly interface, FPGA to provide users with a stable, flexible and cost effective image processing capabilities
Remember to bring your applications, because MSP2000 family is not just a display wall processor, it is also a PC with Intel CPUS and Win7. Run cost-critical applications, access data through the network, engage the information and collaborate on a wall-sized desk top

Features:

MSP2000-mini: Quad core industrial PC based on Intel Celeron
Msp2000-mini: 1~128 SD video capture channels
Msp2000-mini : 1~16 16 HD video capture channels
MSP2000-mini: 1~16 up to 16 display channels
Compatible with MSP wall control software

MSP2000 mini specifications:

19” 2.5U Industrial PC chassis
Dimensions (approx.): length 400mm, height 110mm, width 480mm
INTEL Celeron 1037U & NM70 1.8GHz SBC
PCIe back plane providing 16 lane slots
2GB DDR3 system memory, expand to 4G DDR3
8G SSD hard disk, expand to 16G SSD

Windows7 operation system:

1x VGA output ,1x HDMI ( can be used as a control screen)
1 Gigabit Ethernet ports
3x USB2.0 ,1 x USB 3.0

Dual cooling fans:

Operation temperature: -30~+50 Deg
Supported capture signal: DVI, HDMI: DVI-D, support 800*600~1920*1080p, self adaptive
VGA: DB-15M analog port, support 800*600~1920*1080p, self-adaptive
SD/HDSDI SMPTE 259/292M, support 720P 60/60 ,1080p 25/30/50/60
Support display signal: DVI-D support 1024x768, 1,280*720, 1,366*768, 1920*1,080
Power: 100VAC~240VAC 50/60Hz
Power consumption: less than 200W

The MSP2000 range of video wall controllers brings increased performance based on PC & FPGA integration architecture ,in which PC to provide users with a friendly interface, FPGA to provide users with a stable, flexible and cost effective image processing capabilities

Remember to bring your applications, because MSP2000 family is not just a display wall processor, it is also a PC with Intel CPUS and Win7. Run cost-critical applications, access data through the network, engage the information and collaborate on a wall-sized desk top

MSP2000-mini: Quad core industrial PC based on Intel Celeron

Msp2000-mini: 1~128 SD video capture channels

Msp2000-mini : 1~16 16 HD video capture channels

MSP2000-mini: 1~16 up to 16 display channels

Compatible with MSP wall control software

19” 2.5U Industrial PC chassis

Dimensions (approx.): length 400mm, height 110mm, width 480mm

INTEL Celeron 1037U & NM70 1.8GHz SBC

PCIe back plane providing 16 lane slots

2GB DDR3 system memory, expand to 4G DDR3

8G SSD hard disk, expand to 16G SSD

1x VGA output ,1x HDMI ( can be used as a control screen)
