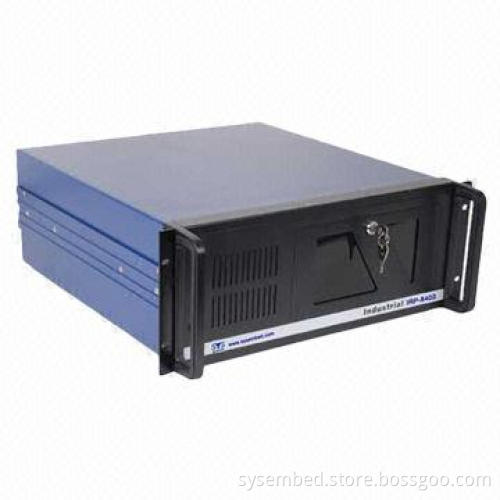

IRP8402-a Computer Rack Mount, FCC Mark, USB Interface

Get Latest Price

Payment Type:: Letter of Credit (LC, L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Specifications:

Drive frame: offers two 3.5-inch hard drive, a floppy drive and two 5.25-inch drive
USB: front panel with a USB interface
Keyboard and mouse: supports a PS/2 keyboard and a PS/2 mouse
Switch: power switch, reset switch and keypad lock switch
Indicator: power-on/off and HDD, KB-LK LED
Power supply: industrial power PS-400 (ATX)
Structure:
- Structure: designed to withstand extreme environments such as shock, vibration, temperature and EMI
- Air cooling: the built-in fan with air filter and power supply fan
- Color: industrial blue (standard)
Environment:
- Operating temperature: 0-55℃ (32-122℉)
- Storage temperature: -20-60℃ (-4-140℉)
- Relative humidity: 10-90% RH at 40℃ (non-condensing)
Shock: 10G acceleration (peak acceleration, continuous 11ms)
Anti-vibration: 5-17Hz, 0.1-inch double amplitude displacement, 17-500H2, 1.5G peak-peak acceleration
With UL/CSA/TUV/CE/FCC marks
EMI: comply with FCC/VDE A-level standards
Embedded motherboard:
- CPU: Onboard Intel Xeon series CPU (Xeon dual-core 2.4GHz)
- System memory: 2 x 240-pin DDRII slots, dual-channel DDRII 533/667MHz system memory, memory up to 4GB
- Display: 4th generation integrated Intel Graphics Media Accelerator GMA950
- Supports VGA display output function, maximum supports dynamic shared memory 224MB
- Ethernet: Onboard 2 x 10/100/1,000Mbps network controller
- Supports for network boot (PXE), wake on LAN (WOL)
- BIOS: 8MB award SPI, supports advanced power management
Watchdog timer: 1-255 seconds/minute, programmable timeout interrupt or system reset
Audio: AC97, supports mic-input, line-output, line-input
I/O interface:
- 1 x ATA33/66/100 IDE, 4 x SATA
- 6 x RS232 (5 x RS-232, 1 x RS-232/422/485)
- 8 x USB2.0, 1 x PS/2 keyboard and mouse interface
- 1 x LPT, EPP/ECP/SPP
- 4 x 32-bit PCI bus slots
- 3 x 16-bit ISA bus slots

Drive frame: offers two 3.5-inch hard drive, a floppy drive and two 5.25-inch drive

USB: front panel with a USB interface

Keyboard and mouse: supports a PS/2 keyboard and a PS/2 mouse

Switch: power switch, reset switch and keypad lock switch

Indicator: power-on/off and HDD, KB-LK LED

Power supply: industrial power PS-400 (ATX)

Structure:

Structure: designed to withstand extreme environments such as shock, vibration, temperature and EMI
Air cooling: the built-in fan with air filter and power supply fan
Color: industrial blue (standard)

Environment:

Operating temperature: 0-55℃ (32-122℉)
Storage temperature: -20-60℃ (-4-140℉)
Relative humidity: 10-90% RH at 40℃ (non-condensing)

Shock: 10G acceleration (peak acceleration, continuous 11ms)

Anti-vibration: 5-17Hz, 0.1-inch double amplitude displacement, 17-500H2, 1.5G peak-peak acceleration

With UL/CSA/TUV/CE/FCC marks

EMI: comply with FCC/VDE A-level standards

Embedded motherboard:

CPU: Onboard Intel Xeon series CPU (Xeon dual-core 2.4GHz)
System memory: 2 x 240-pin DDRII slots, dual-channel DDRII 533/667MHz system memory, memory up to 4GB
Display: 4th generation integrated Intel Graphics Media Accelerator GMA950
Supports VGA display output function, maximum supports dynamic shared memory 224MB
Ethernet: Onboard 2 x 10/100/1,000Mbps network controller
Supports for network boot (PXE), wake on LAN (WOL)
BIOS: 8MB award SPI, supports advanced power management

Watchdog timer: 1-255 seconds/minute, programmable timeout interrupt or system reset

Audio: AC97, supports mic-input, line-output, line-input

I/O interface:
