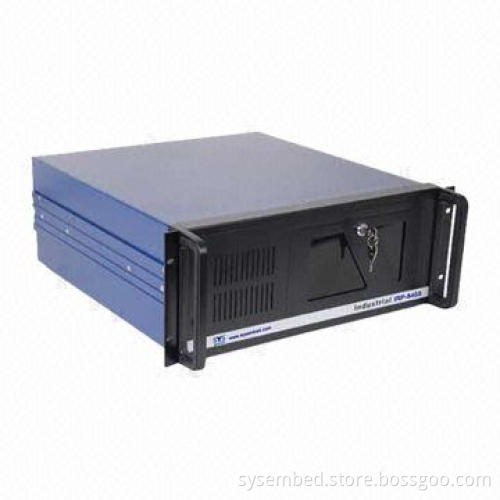

Industrial Computer, IRP8402-A
  • Industrial Computer, IRP8402-A
Industrial Computer, IRP8402-A

Industrial Computer, IRP8402-A

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Specifications:
    • Drive frame: offers two 3.5 "hard drive, a floppy drive and two 5.25" drive
    • USB front panel with a USB interface
    • Keyboard and mouse supports a PS/2 keyboard and a PS/2 mouse
    • Switch power switch, reset switch and keypad lock switch
    • Indicator power on/off and HDD, KB-LK LED
    • Power supply industrial power PS-400 (ATX)
  • Structure: structure designed to withstand extreme environments such as shock, vibration, temperature and EMI
  • Air cooling, built-in fan with air filter and power supply fan
  • Color: industrial blue (standard)
  • Environment:
    • Operating temperature: 0-55℃ (32-122℉)
    • Storage temperature: -20-60℃ (-4-140℉)
    • Relative humidity: 10-90% at 40℃, non-condensing
  • Shock 10G acceleration (peak-peak acceleration, continuous 11ms)
  • Anti-vibration 5-17Hz, 0.1" double amplitude displacement, 17-500H2, 1.5G peak-peak acceleration
  • Security: UL/CSA/TUV/CE/FCC certifications
  • EMI comply with FCC/VDE A-level standards
  • Embedded motherboard:
    • CPU: on-board Intel Xeon series CPU (Xeon dual-core 2.4G)
    • System memory: 2 x 240-pin DDRII slots, dual channel DDRII 533/667MHz system memory, memory up to 4GB
    • Display 4th generation integrated Intel graphics media accelerator GMA950
    • Supports VGA display output function, maximum support dynamic shared memory 224MB
    • Ethernet: on-board 2 x 10/100/1000Mbps network controller
    • Support for network boot (PXE), Wake on LAN (WOL)
    • BIOS 8Mb AWARD SPI, supports advanced power management
    • Watchdog timer: 1-255s/min, programmable timeout interrupt or system reset
    • Audio AC97, supports mic-in, line-out, line-in
  • I/O interface:
    • 1 x ATA33/66/100 IDE, 4 x SATA
    • 6 x RS232 (5 x RS-232, 1 x RS-232/422/485)
    • 8 x USB2.0, 1 x PS/2 keyboard and mouse interface
    • 1 x LPT, EPP/ECP/SPP
    • 4 x 32-bit PCI bus slots
    • 3 x 16-bit ISA bus slots
  • Drive frame: offers two 3.5 "hard drive, a floppy drive and two 5.25" drive
  • USB front panel with a USB interface
  • Keyboard and mouse supports a PS/2 keyboard and a PS/2 mouse
  • Switch power switch, reset switch and keypad lock switch
  • Indicator power on/off and HDD, KB-LK LED
  • Power supply industrial power PS-400 (ATX)
  • Operating temperature: 0-55℃ (32-122℉)
  • Storage temperature: -20-60℃ (-4-140℉)
  • Relative humidity: 10-90% at 40℃, non-condensing
  • CPU: on-board Intel Xeon series CPU (Xeon dual-core 2.4G)
  • System memory: 2 x 240-pin DDRII slots, dual channel DDRII 533/667MHz system memory, memory up to 4GB
  • Display 4th generation integrated Intel graphics media accelerator GMA950
  • Supports VGA display output function, maximum support dynamic shared memory 224MB
  • Ethernet: on-board 2 x 10/100/1000Mbps network controller
  • Support for network boot (PXE), Wake on LAN (WOL)
  • BIOS 8Mb AWARD SPI, supports advanced power management
  • Watchdog timer: 1-255s/min, programmable timeout interrupt or system reset
  • Audio AC97, supports mic-in, line-out, line-in
  • 1 x ATA33/66/100 IDE, 4 x SATA
  • 6 x RS232 (5 x RS-232, 1 x RS-232/422/485)
  • 8 x USB2.0, 1 x PS/2 keyboard and mouse interface
  • 1 x LPT, EPP/ECP/SPP
  • 4 x 32-bit PCI bus slots
  • 3 x 16-bit ISA bus slots
