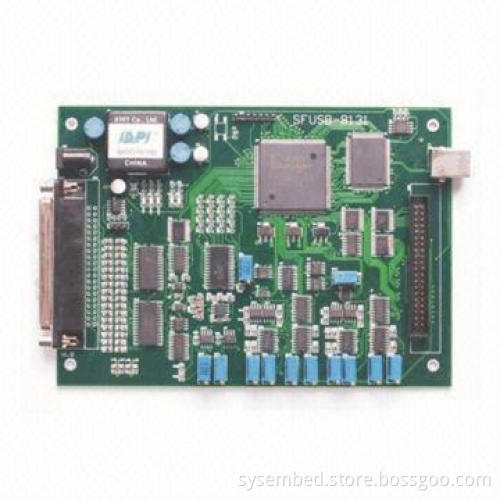

USB Acquisition Card, SFUSB-8131, ≥10MΩ Input Impedance

Get Latest Price

Payment Type:: Letter of Credit (LC, L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Description:

SFUSB-8131 is a new generation of USB bus high-precision multifunction data acquisition card of SYSTECH, 32-channel terminal or 16 differential analog input channels, 16-bit 200kHz sampling rate of the AD channel, 200kHz acquisition rate, the acquisition of absolute and relative accuracy have reached ±3lbs
For precision measurement, control and embedded portable applications such as inside the instrument

Features:

AD channels: 32 single-ended, double-ended 16
AD signal range: -1.25 - +1.25V, -2.5 - +2.5, -5 - +5, -10 - +10V
Input impedance: ≥10MΩ
AD converter resolution: 16
AD conversion speed: 200kHz
AD data FIFO buffer
Memory (FIFO) memory depth: 4K words
AD communication: DMA upload, program queries
AD conversion linearity error: ±3lbs
DA channels: 4
DA range: 0 - 5, 0 - 10, -5 - +5, -10 - +10V
DA converter resolution: 16
DA conversion setup time: ≤10μS
DI: 8-road
DO: 8-road
Input output level: TTL/CMOS level compatible
Internal reference clock: 2MHz, 50% duty cycle

SFUSB-8131 is a new generation of USB bus high-precision multifunction data acquisition card of SYSTECH, 32-channel terminal or 16 differential analog input channels, 16-bit 200kHz sampling rate of the AD channel, 200kHz acquisition rate, the acquisition of absolute and relative accuracy have reached ±3lbs

For precision measurement, control and embedded portable applications such as inside the instrument

AD channels: 32 single-ended, double-ended 16

AD signal range: -1.25 - +1.25V, -2.5 - +2.5, -5 - +5, -10 - +10V

Input impedance: ≥10MΩ

AD converter resolution: 16

AD conversion speed: 200kHz

AD data FIFO buffer

Memory (FIFO) memory depth: 4K words

AD communication: DMA upload, program queries

AD conversion linearity error: ±3lbs

DA channels: 4

DA range: 0 - 5, 0 - 10, -5 - +5, -10 - +10V
