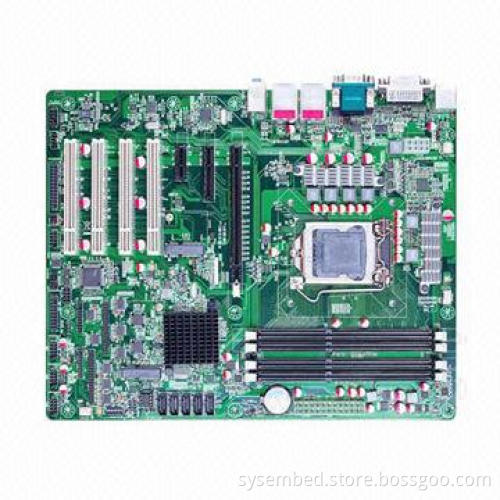

Embedded Motherboard, -20 to 60° Operating Temperature
  • Embedded Motherboard, -20 to 60° Operating Temperature
Embedded Motherboard, -20 to 60° Operating Temperature

Embedded Motherboard, -20 to 60° Operating Temperature

Get Latest Price
Payment Type:
Letter of Credit (LC, L/C)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Letter of Credit (LC, L/C)
Product Description
Product Description
  • System:
    • Processor: supports LGA1155 i7/i5/i3 sandy bridge processor family
    • Chipset: Intel Q67 Express
    • Memory: 4 x 240-pin DIMM memory slots, maximum supports 32GB DDR3 dual-channel system memory
    • Expansion slots: 4 x PCI, 1 x PCIe (16x), 1 x PCIe (4x), 1 x PCIe (1x), 1 x mini PCIe
    • Watch dog timer: 1-255 seconds/minute
    • Timer system reset or interrupt, setup by software
  • Display:
    • Graphics core: Intel HD graphic 2,000 and 3,000 GPU graphics core, supports Dx11
    • Display memory: DVMT dynamic video memory
    • Display interface: HDMI®, DVI, VGA multi-display interface
    • Asynchronous dual-display: supports HDMI® DVI VGA synchronous and asynchronous dual-display
  • Ethernet:
    • Network chip: Intel 82574L and Intel 82579lm dual Gigabit LAN controller supports WOL and PXE
    • Network interface: 2 x RJ45
  • Audio:
    • Codec: Realtek ALC262 HD audio
    • Audio interface: line-out, line-in, mic-in, S/PDIF, CD-in
  • Storage:
    • SATA: 5 x SATAII
    • SSD: 1 x mini SATA (mini PCIe physical interface)
    • RAID: supports RAID 0/1/5/10
  • I/O interface:
    • GPIO: 8-channel programmable digital I/O
    • TPM: 1 x TPM security interface (trusted platform module)
    • CIR: 1 x CIR (infrared transmission interface)
    • COM: 9 x RS-232, 1 x RS-232/422/485 (through on board jumpers) all COM ports supports hot mode
    • USB: 12 x USB2.0
    • LPT: 1 x LPT
    • PS/2: 1 x PS/2 for KB and mouse
    • BIOS: 64MB SMT flash ROM
  • Other features:
    • Power supply: ATX 24-pin
    • Operating temperature: -20 - 60°
    • Storage temperature: -40 - 80°
    • Relative humidity: 0-95% RH relative humidity (non-condensing)
    • Dimensions: 305 (12) x 244mm (9.6-inch)
  • Processor: supports LGA1155 i7/i5/i3 sandy bridge processor family
  • Chipset: Intel Q67 Express
  • Memory: 4 x 240-pin DIMM memory slots, maximum supports 32GB DDR3 dual-channel system memory
  • Expansion slots: 4 x PCI, 1 x PCIe (16x), 1 x PCIe (4x), 1 x PCIe (1x), 1 x mini PCIe
  • Watch dog timer: 1-255 seconds/minute
  • Timer system reset or interrupt, setup by software
  • Graphics core: Intel HD graphic 2,000 and 3,000 GPU graphics core, supports Dx11
  • Display memory: DVMT dynamic video memory
  • Display interface: HDMI®, DVI, VGA multi-display interface
  • Asynchronous dual-display: supports HDMI® DVI VGA synchronous and asynchronous dual-display
  • Network chip: Intel 82574L and Intel 82579lm dual Gigabit LAN controller supports WOL and PXE
  • Network interface: 2 x RJ45
  • Codec: Realtek ALC262 HD audio
  • Audio interface: line-out, line-in, mic-in, S/PDIF, CD-in
  • SATA: 5 x SATAII
  • SSD: 1 x mini SATA (mini PCIe physical interface)
  • RAID: supports RAID 0/1/5/10
  • GPIO: 8-channel programmable digital I/O
  • TPM: 1 x TPM security interface (trusted platform module)
  • CIR: 1 x CIR (infrared transmission interface)
  • COM: 9 x RS-232, 1 x RS-232/422/485 (through on board jumpers) all COM ports supports hot mode
  • USB: 12 x USB2.0
  • LPT: 1 x LPT
  • PS/2: 1 x PS/2 for KB and mouse
  • BIOS: 64MB SMT flash ROM
  • Power supply: ATX 24-pin
  • Operating temperature: -20 - 60°
  • Storage temperature: -40 - 80°
  • Relative humidity: 0-95% RH relative humidity (non-condensing)
  • Dimensions: 305 (12) x 244mm (9.6-inch)
