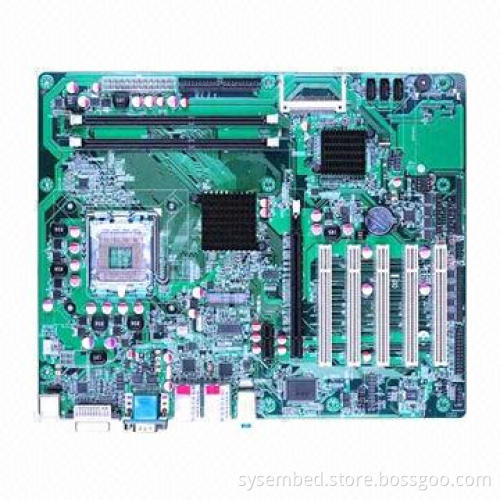

Embedded Systems IMA-G41, -40-80°C Storage Temperature
  • Embedded Systems IMA-G41, -40-80°C Storage Temperature
Embedded Systems IMA-G41, -40-80°C Storage Temperature

Embedded Systems IMA-G41, -40-80°C Storage Temperature

Get Latest Price
Payment Type:
Letter of Credit at Sight (Sight L/C)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Letter of Credit at Sight (Sight L/C)
Product Description
Product Description
  • Specifications:
    • Processor: LGA775 core 2 quad-core 2 dual, Pentium Duo, Celeron Duo series
    • Chipset: Intel G41 + ICH7
    • Memory: 2 x 24-pin DIMM memory slots, maximum supports 8GB DDR3 dual-channel system
    • Expansion interface: 5 x PCI, 1 x PCIe (16X), 1 x PCIe (1X), 1 x mini PCIe
    • Watchdog timer: programmable via S/W from 1 second to 255 minutes
    • TPM: 1 x TPM1.2 security interface (trusted platform module)
    • Display graphics core: Intel GMA X4500, core frequency of 475MHz and SM4.0 support direct X 10 graphic effects
    • Display memory: DVMT dynamic video memory 512MB
    • Display interface: VGA and DVI-D dual-display
    • Asynchronous dual-display: supports VGA and DVI dual-display output synchronous and asynchronous
    • Ethernet:
      • Network chip: 2 x Intel 82574L gigabit Ethernet controller that supports WOL and PXE
      • Network interface: 2 x RJ45
    • Audio:
      • Codec: Realtek ALC662 HD audio codec
      • Audio interface: line-out, line-in, mic-in
    • Storage device:
      • SATA: 3 x SATAII
      • IDE: 1 x 40-pin IDE, supports two IDE devices
      • CF card: 1 x CF type II socket (share with IDE channel)
      • SSD: 1 x mini PCIE SSD solid state hard disk interface (optional, non-standard)
    • I/O interface:
      • GPIO: 8-channel programmable digital I/O
      • COM: 9 x RS-232,1 x RS-232/422/485 (via on-board jumper selectable)
      • USB: 8 x USB2.0
      • LPT: 1 x LPT (SPP/EPP/ECP)
      • PS/2: 1 x PS/2 for KB, 1 x PS/2 for mouse
    • Power supply：24 and 4-pin 12V, ATX power
    • Operating temperature: -20-60℃
    • Storage temperature: -40-80℃
  • Processor: LGA775 core 2 quad-core 2 dual, Pentium Duo, Celeron Duo series
  • Chipset: Intel G41 + ICH7
  • Memory: 2 x 24-pin DIMM memory slots, maximum supports 8GB DDR3 dual-channel system
  • Expansion interface: 5 x PCI, 1 x PCIe (16X), 1 x PCIe (1X), 1 x mini PCIe
  • Watchdog timer: programmable via S/W from 1 second to 255 minutes
  • TPM: 1 x TPM1.2 security interface (trusted platform module)
  • Display graphics core: Intel GMA X4500, core frequency of 475MHz and SM4.0 support direct X 10 graphic effects
  • Display memory: DVMT dynamic video memory 512MB
  • Display interface: VGA and DVI-D dual-display
  • Asynchronous dual-display: supports VGA and DVI dual-display output synchronous and asynchronous
  • Ethernet:
    • Network chip: 2 x Intel 82574L gigabit Ethernet controller that supports WOL and PXE
    • Network interface: 2 x RJ45
  • Audio:
    • Codec: Realtek ALC662 HD audio codec
    • Audio interface: line-out, line-in, mic-in
  • Storage device:
    • SATA: 3 x SATAII
    • IDE: 1 x 40-pin IDE, supports two IDE devices
    • CF card: 1 x CF type II socket (share with IDE channel)
    • SSD: 1 x mini PCIE SSD solid state hard disk interface (optional, non-standard)
  • I/O interface:
    • GPIO: 8-channel programmable digital I/O
    • COM: 9 x RS-232,1 x RS-232/422/485 (via on-board jumper selectable)
    • USB: 8 x USB2.0
    • LPT: 1 x LPT (SPP/EPP/ECP)
    • PS/2: 1 x PS/2 for KB, 1 x PS/2 for mouse
  • Power supply：24 and 4-pin 12V, ATX power
  • Operating temperature: -20-60℃
  • Storage temperature: -40-80℃
  • Network chip: 2 x Intel 82574L gigabit Ethernet controller that supports WOL and PXE
  • Network interface: 2 x RJ45
  • Codec: Realtek ALC662 HD audio codec
  • Audio interface: line-out, line-in, mic-in
  • SATA: 3 x SATAII
  • IDE: 1 x 40-pin IDE, supports two IDE devices
  • CF card: 1 x CF type II socket (share with IDE channel)
  • SSD: 1 x mini PCIE SSD solid state hard disk interface (optional, non-standard)
  • GPIO: 8-channel programmable digital I/O
  • COM: 9 x RS-232,1 x RS-232/422/485 (via on-board jumper selectable)
  • USB: 8 x USB2.0
  • LPT: 1 x LPT (SPP/EPP/ECP)
  • PS/2: 1 x PS/2 for KB, 1 x PS/2 for mouse
