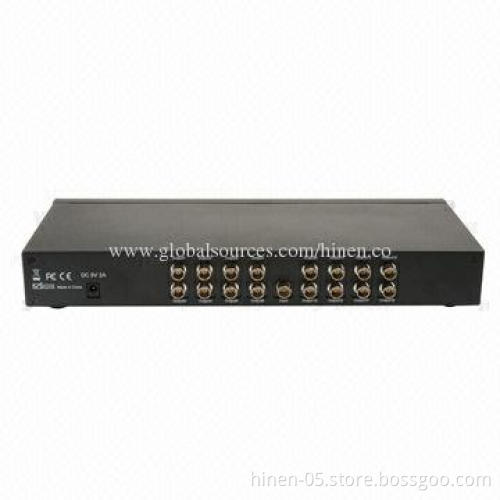

3G SDI 1*16 Splitter with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps

3G SDI 1*16 Splitter with Reclock, Supports Wide Range of Data Rate 270Mbps-2.97Gbps

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

This is a 3G 1 ×16 SDI splitter with Reclock, which makes it possible to transfer 1 SDI signal to 16 monitors simultaneously

This 3G SDI splitter is the most efficient solution for transmission of digital video and audio signals from a single SDI source to multiple high-definition SDI monitors or other SDI devices, making video and audio more affordable and accessible

This product is specially designed with equalizer IC in its input and drive IC in its outputs

All of the input and output supports long coaxial cable

Supports multiple video resolution:

SD: 480i, 576i and 625i
HD: 720p at 24/25/30/50/60fps
HD: 1,080i at 50/60fps
HD: 1,080p at 24/25/30fps
3G: 1,080p at 50/602fps

Supports multiple color space:

RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 or 4:2:0 sampled

Supports wide range data rate: 270Mbps-2.97Gbps

Supports multiple deep color: 8, 10, 12-bit

Compatible with HD CCTV 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259)

Electrical protection:

Power reverse polarity protection
Power over-voltage protection, but voltage must <28V
ESD protect, contact discharge 8kV, air discharge 15kV

SD: 480i, 576i and 625i

HD: 720p at 24/25/30/50/60fps

HD: 1,080i at 50/60fps

HD: 1,080p at 24/25/30fps

3G: 1,080p at 50/602fps

RGB or YCbCr 4:4:4 sampled

YCbCr 4:2:2 or 4:2:0 sampled

Power reverse polarity protection

Power over-voltage protection, but voltage must <28V

ESD protect, contact discharge 8kV, air discharge 15kV
