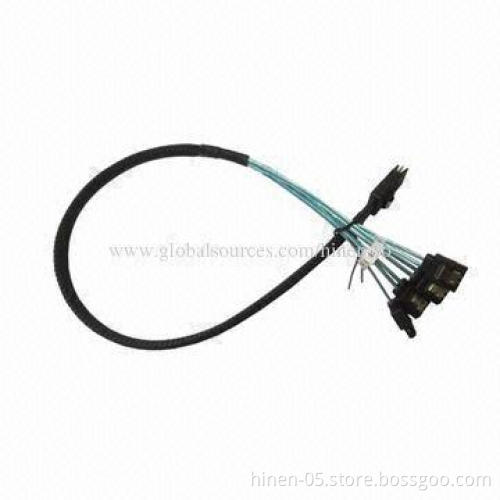

Mini SAS to 4 SATA Cable with 30AWG Wire Size, 100Ω Impedance

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Hiitop mini serial attached SCSI (mini SAS) internal cable assemblies provide for high-speed transmission up to 6Gbps
It is an ideal interconnect solution for the growing server and storage market
Mini SAS are designed to significantly reduce the cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data) and are being widely adopted for next-generation designs
The 36-position internal mini SAS cable assemblies are available in custom length of up to one meter
They are also available in three standard sideband configurations
Customized sideband configurations are available upon request
Mini SAS was developed to supports data rates at 6.0Gbps in order to meet the ongoing industry requirement for high-speed and greater bandwidth, this data rate is achieved via the use of high-speed differential signals
One assembly is designed to supports up to four channels of transmit and receive

Specifications:

Length: 0.5m
Wire size: 30AWG
Impedance: 100Ω
Compliant to SAS-2.1 specifications
Compliant with serial SAS specifications
Fast data rate up to 6Gbps
Meets current serial SAS specifications and ensures maximum performance

Applications:

Host bus adapters
Workstations
Hard drive back-planes
Servers
Backplane interconnect
Network and RAID storage

Hiitop mini serial attached SCSI (mini SAS) internal cable assemblies provide for high-speed transmission up to 6Gbps

It is an ideal interconnect solution for the growing server and storage market

Mini SAS are designed to significantly reduce the cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data) and are being widely adopted for next-generation designs

The 36-position internal mini SAS cable assemblies are available in custom length of up to one meter

They are also available in three standard sideband configurations

Customized sideband configurations are available upon request

Mini SAS was developed to supports data rates at 6.0Gbps in order to meet the ongoing industry requirement for high-speed and greater bandwidth, this data rate is achieved via the use of high-speed differential signals

One assembly is designed to supports up to four channels of transmit and receive

Length: 0.5m

Wire size: 30AWG

Impedance: 100Ω

Compliant to SAS-2.1 specifications

Compliant with serial SAS specifications

Fast data rate up to 6Gbps

Meets current serial SAS specifications and ensures maximum performance

Host bus adapters

Workstations

Hard drive back-planes

Servers
