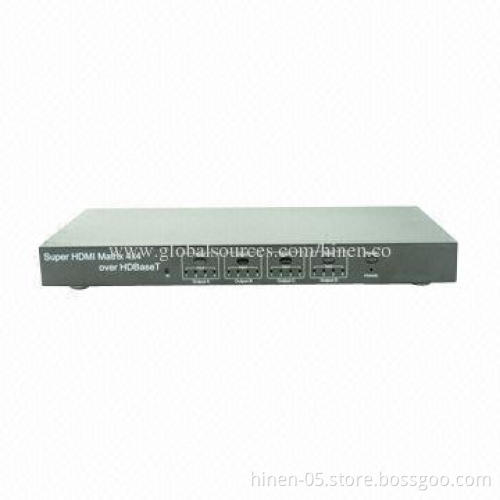

Super HDMI Matrix, 4x4 Over HD BaseT, Supports Highest Video Resolution 1080p

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

This super HDMI matrix offers unprecedented flexibility and convenience by routing high definition audio/video from any of four HDMI video sources to any of 4 displays over HDMI cable or 4 remote displays over inexpensive, standard CAT5e/6 cable

With built-in 4 HDBaseT modules, it can extend your HD display up to 330 feet (100 meters) away from your HDMI or DVI-D source using one CAT5e/6 cable

Four receivers work with the main sender as a full functional module

Every source and display is accessible at all times by selecting it with an IR remote or through RS232 port

This product has many features that enable it to perform in a superior manner

Among those features you will find:

Allows any HDMI display to view any source at any time
Allows any source to be displayed on multiple displays at the same time
Each Output includes one HDMI output and HDBaseT output, but only one way is available at a time
Each HDBaseT output is connected to a receiver
HDBaseT output extends signal up to 100m for 1080p by one CAT5e/6 cable
Each input includes an infrared emitter, which is used to control the long-distance source device by remote control
Each display's inputs can be switched with the IR remote control or through RS232
Supports highest video resolution 1080p
Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
Supports 12bit per channel (36bit all channel) deep color
Supports HDCP
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
Supports 3D all format, including 1080p at 23.98/24Hz, 720p at 59.94/60Hz/50Hz, bandwidth up to 225MHz
Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the vicinity of the display back to the source devices

Allows any HDMI display to view any source at any time

Allows any source to be displayed on multiple displays at the same time

Each Output includes one HDMI output and HDBaseT output, but only one way is available at a time

Each HDBaseT output is connected to a receiver

HDBaseT output extends signal up to 100m for 1080p by one CAT5e/6 cable

Each input includes an infrared emitter, which is used to control the long-distance source device by remote control

Each display's inputs can be switched with the IR remote control or through RS232

Supports highest video resolution 1080p

Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

Supports 12bit per channel (36bit all channel) deep color

Supports HDCP

Supports uncompressed audio such as LPCM

Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

Supports 3D all format, including 1080p at 23.98/24Hz, 720p at 59.94/60Hz/50Hz, bandwidth up to 225MHz

Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the vicinity of the display back to the source devices
