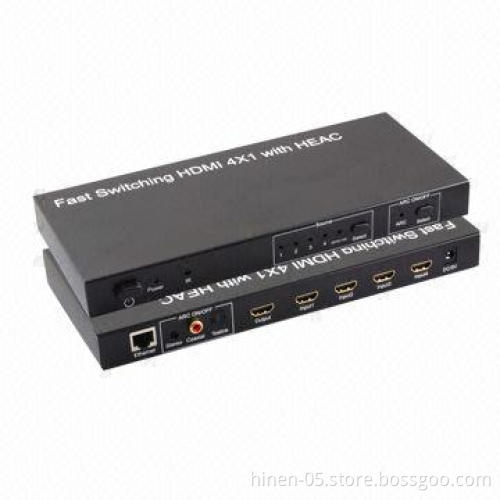

Fast Switching HDMI 4X1 with HEAC, Supports Highest Video Resolution 1,080p

Fast Switching HDMI 4X1 with HEAC, Supports Highest Video Resolution 1,080p

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Supports 4 HDMI inputs and 1 HDMI output

With Built-in HDCP engine for Instant Port Switching(IPS), 4 ports switching can be very fast because there is no need to redo HDCP authentication when port switching occurs

With the built-in HEC(HDMI Ethernet) and ARC (Audio Return Channel) chips, it can split HEC which is from HDTV to Ethernet signals, and can split ARC which is also from HDTV to Coaxial, Toslink, stereo audio signals which are also from source device through ARC on/off button on the remote control

Supports 4 HDMI inputs and 1 HDMI output

Built-in HDCP engine for Instant Port Switching(IPS), 4 Port switching can be very fast because there is no need to redo HDCP authentication when port switching occurs

Supports Audio Return Channel(ARC) from sink device. Connect ARC port to amplifier receiver

Supports HEC from sink device, connect Ethernet port to Ethernet devices, such as computer, route and more

Supports digital audio Toslink and COAX output simultaneously and Stereo audio output from source device. Connect these port to amplifier receiver

Supports 3D all format, including 1,080p@23.98/24Hz, 720p@59.94/60Hz/50Hz, bandwidth up to 225MHz

Supports CEC

Supports highest video resolution 1,080p

Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth

Supports 12bit per channel (36bit all channel) deep color

Supports uncompressed audio such as LPCM

Supports compressed audio such as DTS Digital, Dolby digital （including DTS-HD and Dolby True HD）
