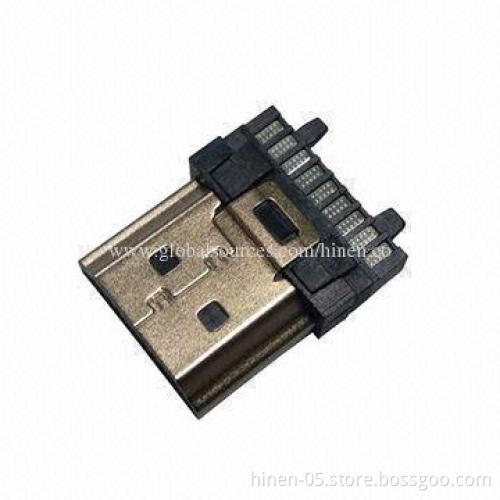

HDMI® Connector, A Type, Plug, Direct Wire Soldering, 40V AC Input Voltage
  • HDMI® Connector, A Type, Plug, Direct Wire Soldering, 40V AC Input Voltage
HDMI® Connector, A Type, Plug, Direct Wire Soldering, 40V AC Input Voltage

HDMI® Connector, A Type, Plug, Direct Wire Soldering, 40V AC Input Voltage

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Description:
    • Contact pins used the import phosphor bronze
    • The shell thickness up to 0.5mm, 0.8 gold-plated
    • Through the third party high-frequency test
    • HDMI® association certified passed
  • Specifications:
    • Electrical:
      • Contact current rating: 0.5A (minimum)
      • Voltage rating: 40V AC
      • Contact resistance: 30mΩ (minimum)
      • Dielectric withstanding voltage: 500V AC (minimum) (un-mated) 300V AC (minimum)(mated)
      • Insulation resistance: 100MΩ (minimum) (un-mated) 10MΩ (mated)
    • Mechanical:
      • Insertion force: 44.1N (maximum)
      • Extraction force: 9.8N (minimum), 39.2N (maximum)
      • High-durability class: 10,000 cycles (minimum)
    • Environmental:
      • Operating temperature: 0 to +60°C
      • Storage temperature: -20 to +85°C
  • Contact pins used the import phosphor bronze
  • The shell thickness up to 0.5mm, 0.8 gold-plated
  • Through the third party high-frequency test
  • HDMI® association certified passed
  • Electrical:
    • Contact current rating: 0.5A (minimum)
    • Voltage rating: 40V AC
    • Contact resistance: 30mΩ (minimum)
    • Dielectric withstanding voltage: 500V AC (minimum) (un-mated) 300V AC (minimum)(mated)
    • Insulation resistance: 100MΩ (minimum) (un-mated) 10MΩ (mated)
  • Mechanical:
    • Insertion force: 44.1N (maximum)
    • Extraction force: 9.8N (minimum), 39.2N (maximum)
    • High-durability class: 10,000 cycles (minimum)
  • Environmental:
    • Operating temperature: 0 to +60°C
    • Storage temperature: -20 to +85°C
  • Contact current rating: 0.5A (minimum)
  • Voltage rating: 40V AC
  • Contact resistance: 30mΩ (minimum)
  • Dielectric withstanding voltage: 500V AC (minimum) (un-mated) 300V AC (minimum)(mated)
  • Insulation resistance: 100MΩ (minimum) (un-mated) 10MΩ (mated)
  • Insertion force: 44.1N (maximum)
  • Extraction force: 9.8N (minimum), 39.2N (maximum)
  • High-durability class: 10,000 cycles (minimum)
  • Operating temperature: 0 to +60°C
  • Storage temperature: -20 to +85°C
