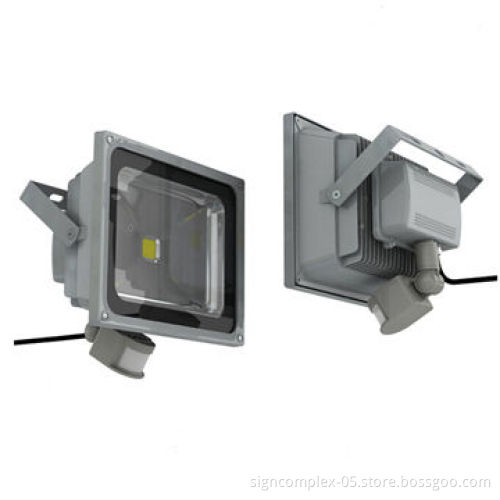

50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54
  • 50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54
  • 50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54
  • 50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54
50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54
50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54
50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54

50W infrared and light detected LED floodlight, can service over 50,000 hours, IP rating Ip54

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Aluminum die-cast alloy body and toughened glass, durable
    • Good heat dissipation performance
    • IP rating is up to Ip54
    • High utilization of power, PF ≥0.9
    • 60% energy-saving than traditional ones
    • Use 1pc of integrated high-power COB chip
    • Service life over 50,000 hours
    • RoHS and CE certified
  • Technical parameters:
    • Input voltages: 100-240V AC, 50/60Hz
    • Max current: 0.65A
    • LED type: COB
    • LED quantity: 1pc
    • Power: 50W
    • Shell colors: Grey, black
    • Net weight: 2.78kg
    • Gross weight: 3.18kg
    • Inner box size: 330*180*275mm
    • Container size: 745*345*290mm (4pcs per box)
    • Total weight: 13.6kg
    • Detection range:180°
    • Detection distance: Max.12m (24℃) (adjustable)
    • Delay time: 5sec-6 min (adjustable)
    • Environmental illumination: 2~2000LUX (adjustable)
    • Operating temperatures: -10-40°C
    • Operating humidity: Smaller than 93% RH
    • Installation heights: 1.8-2.5m
  • Main applications:

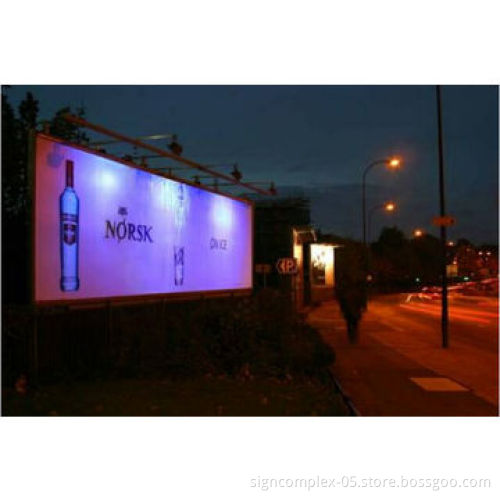

    • Mainly used for floodlighting, facade decorations, factory, stadiums, harbor,  parking lot and street lighting
  • Instruction:
    • Lux:
      • Can switch to day mode or night mode
      • When switch to the “sun”, the detector will work all day
      • When switch to the “moon”, the detector will only work at night automatically
    • Time:
      • Can adjust delay time of detector (5±2sec~6±1min)
      • Delay time means when the detector detect human, how much time it will be delayed to close itself after that person go out of the detect zone
    • Sens:
      • It's the sensitivity of the detector, normally no need to adjust
      • If the sensitivity is too strong for you, you can adjust it to the minimum value
  • Aluminum die-cast alloy body and toughened glass, durable
  • Good heat dissipation performance
  • IP rating is up to Ip54
  • High utilization of power, PF ≥0.9
  • 60% energy-saving than traditional ones
  • Use 1pc of integrated high-power COB chip
  • Service life over 50,000 hours
  • RoHS and CE certified
  • Input voltages: 100-240V AC, 50/60Hz
  • Max current: 0.65A
  • LED type: COB
  • LED quantity: 1pc
  • Power: 50W
  • Shell colors: Grey, black
  • Net weight: 2.78kg
  • Gross weight: 3.18kg
  • Inner box size: 330*180*275mm
  • Container size: 745*345*290mm (4pcs per box)
  • Total weight: 13.6kg
  • Detection range:180°
  • Detection distance: Max.12m (24℃) (adjustable)
  • Delay time: 5sec-6 min (adjustable)
  • Environmental illumination: 2~2000LUX (adjustable)
  • Operating temperatures: -10-40°C
  • Operating humidity: Smaller than 93% RH
  • Installation heights: 1.8-2.5m
  • Mainly used for floodlighting, facade decorations, factory, stadiums, harbor,  parking lot and street lighting
  • Lux:
    • Can switch to day mode or night mode
    • When switch to the “sun”, the detector will work all day
    • When switch to the “moon”, the detector will only work at night automatically
  • Time:
    • Can adjust delay time of detector (5±2sec~6±1min)
    • Delay time means when the detector detect human, how much time it will be delayed to close itself after that person go out of the detect zone
  • Sens:
    • It's the sensitivity of the detector, normally no need to adjust
    • If the sensitivity is too strong for you, you can adjust it to the minimum value
  • Can switch to day mode or night mode
  • When switch to the “sun”, the detector will work all day
  • When switch to the “moon”, the detector will only work at night automatically
  • Can adjust delay time of detector (5±2sec~6±1min)
  • Delay time means when the detector detect human, how much time it will be delayed to close itself after that person go out of the detect zone
  • It's the sensitivity of the detector, normally no need to adjust
  • If the sensitivity is too strong for you, you can adjust it to the minimum value
